China CNC Router 1224 for Wooden CNC Cutting Machine Price
| Price: | US $ 5000-7000/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,Western Union |

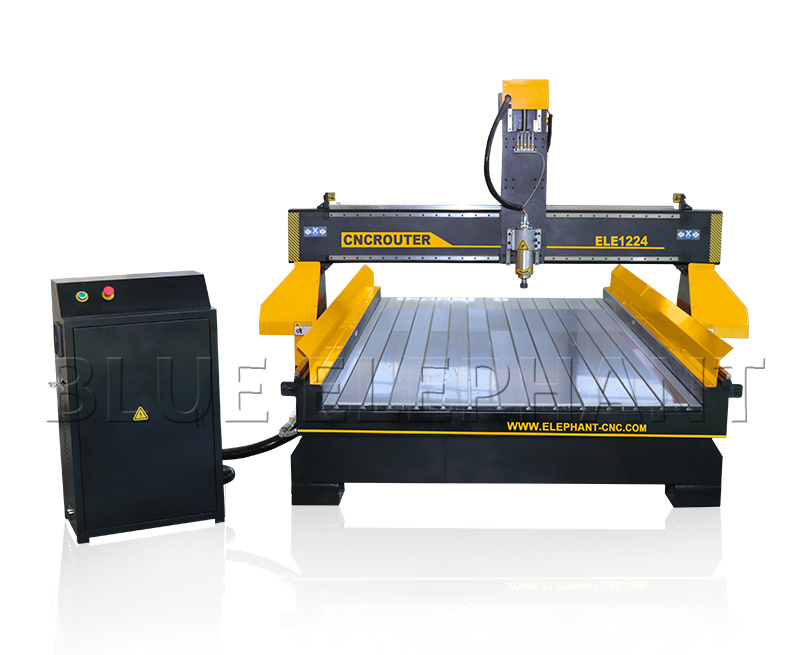

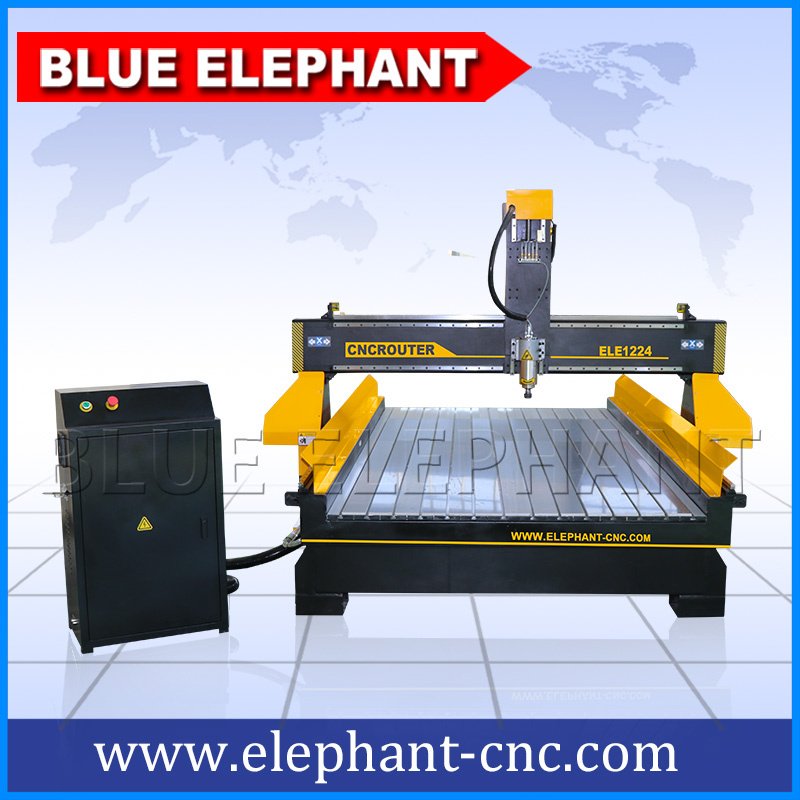

China Cnc Router 1224 for Wooden Machinery Bed Making Machine
Features
- 1200x2400x400mm effective working area
- 2.2KW Changsheng water cooling spindle, 24000RPM
- 2.2kw Fuling Inverter
- FL118 bigger stepper motor and YAKO2811 drivers
- Mach3 controller
- T-slot working table with hard pvc protection
- 20# ABBA linear guide and rails and Helical rack gear for X, Y axis, Taiwan TBI ball screw for Z travel
- Japan OMRON limit switch for X, Y, Z axis
- Manual Lubrication system
- Manual tool sensor calibration
- Working voltage: 380V/50HZ/3PH
Advantages
- Low cost: economic price high z axis travel professional cnc foam cutting machine
- Popular design: Industrial class square tube strong machine bed and gantry
- Durable table: t-slot working table with hard pvc protection, especially for foam and styrofoam, pu foam cutting
- Multi-use: with removable rotary device attached on table, which is mainly used for wood and foam materials cylinder objects
Technical parameters
Description | Parameter |
X,Y,Z Working Area | 1200x2400x400mm |
Table Surface | T-slot working table with hard pvc protection |
Structure | Industrial class square tube strong structure |
X, Y Structure | 20#Taiwan ABBA Linear guide and helical rack |
Z Structure | Taiwan TBI Ball screw |
X,Y Resolution | <0.01mm |
Spindle Power | 2.2KW Changsheng water cooling spindle |
Spindle Speed | 0-24000RPM |
Drive Motors | FL118 stepper motor and YAKO2811 drive |
Inverter | 2.2kw Fuling Inverter |
Control System | Mach3 controller |
Lubrication | Manual Lubrication system |
Tool sensor | Manual tool sensor calibration |
Control box | Single Control box |
Option | Removable Rotary device 200*2000mm |
Limit switch | Japan OMRON limit switch for X, Y, Z axis
|
Command Language | G Code |
Computer Interface | USB |
Collet | ER32 |
Software Compatibility | ARTCAM 2012 software, (Option: Artcam Type3 Software) |
Running Environment Temperature | 0 - 45 Centigrade |
Relative Humidity | 30% - 75% |
Optional Parts
1.1 Oil/Water Mist Cooling Sprayer
It is suitable for cutting or engraving soft-metal (like aluminum and cooper), stone(marble) etc material, has cooling effect.
1.2 Spindle cover and Dust collector
They are designed for human operation protection and promise clean table surface, save maintenance time for you.
1.3 Pump
We can provide vacuum pump or water circulation pump for your choice.
1.4 Rotary Device
It can engrave cylindrical object.
The rotary device's diameter, length and position can be customized according to your requests.
We can also provide other optional parts according to your needs.

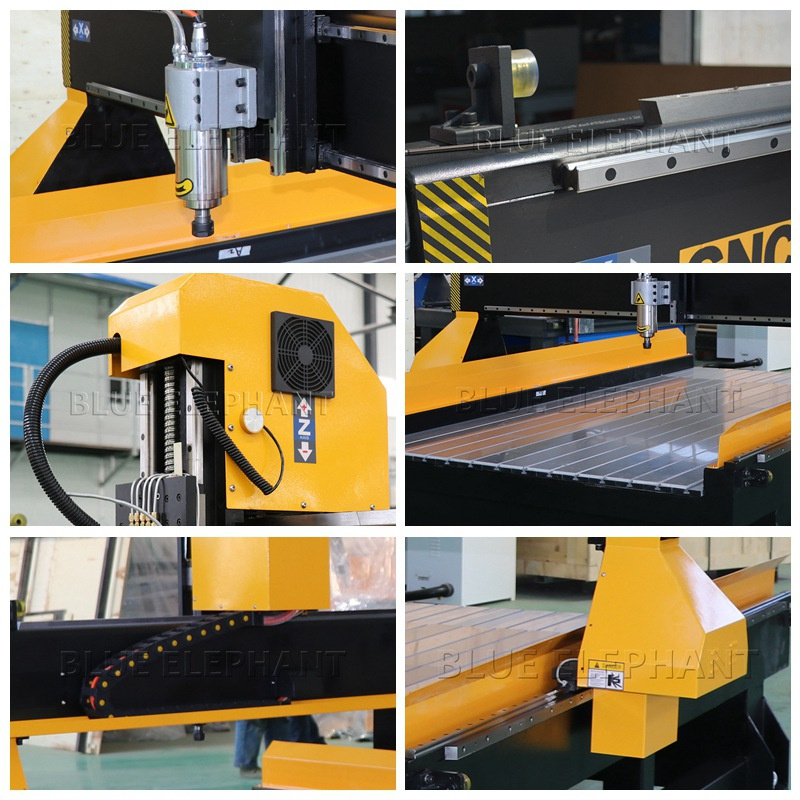

Product Details
Samples
Packaging&Delivery:
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment.
| 1. Spindle | Water Cooling Spindle |
| 2. Inverter | China Famous Fuling Inverter |
| 3. Motor and Drive | Stepper Motor FL118 stepper motor, big power. YAKO 2608 Drive and Leadshine 860H Drive can run with smaller noise, lower heating, smoother movement and have better performances at higher speed |
| 4. Control system | Mach3 Controller |
| 5. Transmission system | Taiwan TBI Ball Screw and Gear and Rack, Taiwan HINWIN or ABBA Linear Rail |
| 6. Working table | T-slot and Vacuum Table Rigid vacuum table with grids and T-slots maximizes the vacuum hold-down and also enables you to clamp the workpiece in place. |
Samples
1. Wood furniture industry
Doors; Cabinets; Tables; Chairs.
Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard
Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
4. Artwork and Decoration
wood crafts; gift box; jewelry box
5. Others
Relief sculpture and 3D engraving and Cylindrical object.
Packaging&Delivery:
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment.
Our Services:
1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or WhatsApp) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.

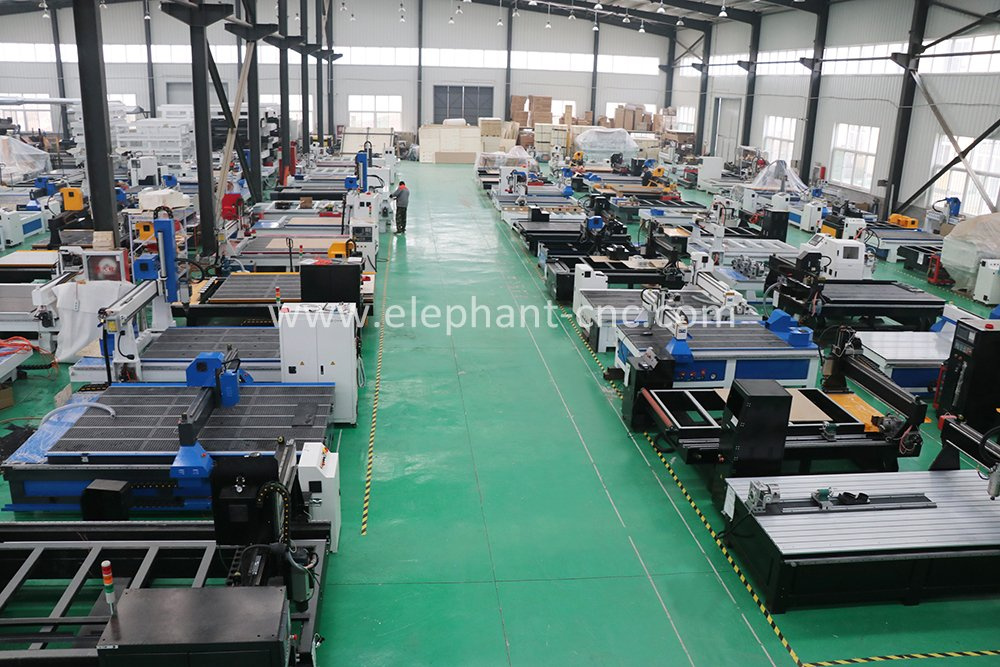

- Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
- Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!
- Just looking forward to service every customer, like you.
Contact us:
Mobile: 0086-15064026772
Web: www.elephant-cnc.com
| Prod Model: | ELE1224 |
|---|---|
| Voltage: | AC380V/50Hz |
| Power(W): | According to Your Order |
| Weight: | 1500kg |
| Spindle: | 2.2kw Changsheng Water Cooling Spindle, 24000rpm |
| Control System: | Mach3 Controller |
| Working Area: | 1200X2400X400mm |
| Motor: | FL118 Bigger Stepper Motor and Yako2811 Drivers |
| Inverter: | 2.2kw Fuling Inverter |
| Transmission: | Taiwan Tbi Ball Screw and Taiwan Hiwin Linear Guid |
| Software: | Ucancam / Artcam/Type3 |
| Spindle Layout: | Spindle Over |
| Spindle Number: | Single-Spindle |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Certification: | SGS BV TUV |
