Linyi Chaoda International CNC Technology Co., Ltd. >> Cheap Price 3D CNC Router / Wood Cutting Machine for Wood, MDF, Aluminum, Alucobond, Stone, Foam
Cheap Price 3D CNC Router / Wood Cutting Machine for Wood, MDF, Aluminum, Alucobond, Stone, Foam
| Price: | Negotiable/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T |
Cheap price 3D CNC router / Wood cutting machine for wood,MDF,aluminum,alucobond,stone,foam
For cutting/engraving foam ,plastic,stone,wood,aluminum,Alucbond,ACP,copper,PVC ,glass etc
For making kitchen top / counter top / table top / basin table etc
For making furniture / mould / releif / sculpture / artwork / decoration / craft / mold etc
1.Technical Specifications
Description | Parameters |
Model | JCW1325R |
X,Y,Z axis working area | 1300*2500*300mm |
Whole structure | Welded Steel gantry structure |
Table surface | Clamp & Vaccum suction table |
X,Y,Z structure | Taiwan HIWIN Square linear guide rail |
X,Y structure | Rack and pinion transmission,high speed and more stable; Y -double motor drive |
Z structure | Imported ball screw, high precision |
Max. idling speed | 25m/min |
Max. working speed | 15m/min |
Repositioning Accuracy | ±0.05mm |
X Y Z working Accuracy | < 0.02mm |
Spindle | 4.5kw air-cooling spindle |
Spindle rotating speed | 0-24000rpm/min |
Rotary size | 1300 mm long , 200 mm diameter ( optional bigger size ) |
Diameter of tools | Φ3.175 -Φ12.7 |
Collet size | ER 25 |
Operation language | G code (plt, mmg, uoo, bmp) |
Driving system | Stepper motor and leadshine driver |
Operating system | DSP control system |
Working voltage | AC380V, 3ph, 50-60Hz |
Software | UcancamV8 / Type3 / Artcam software (option) |

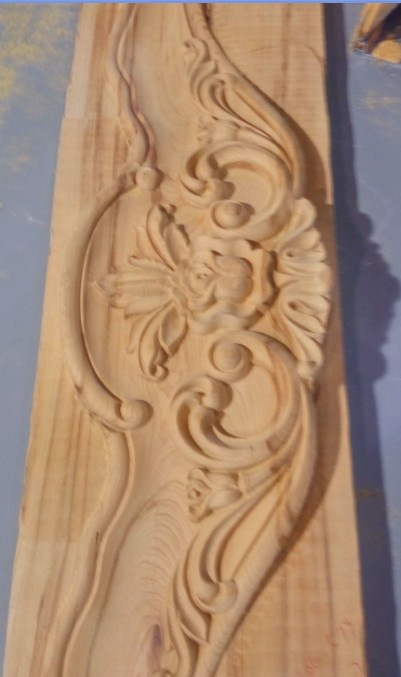

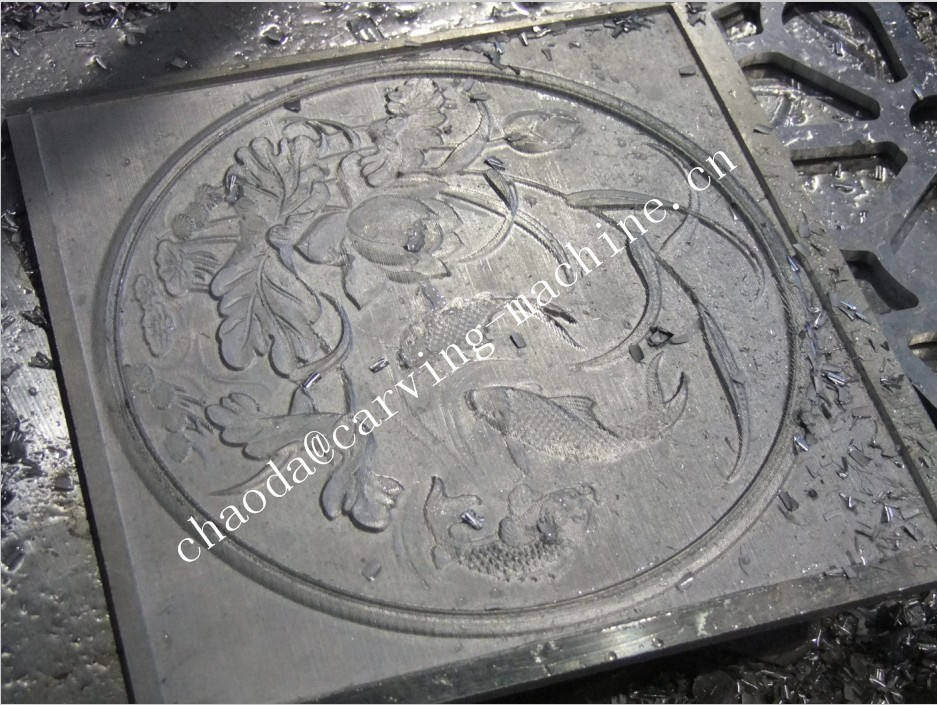

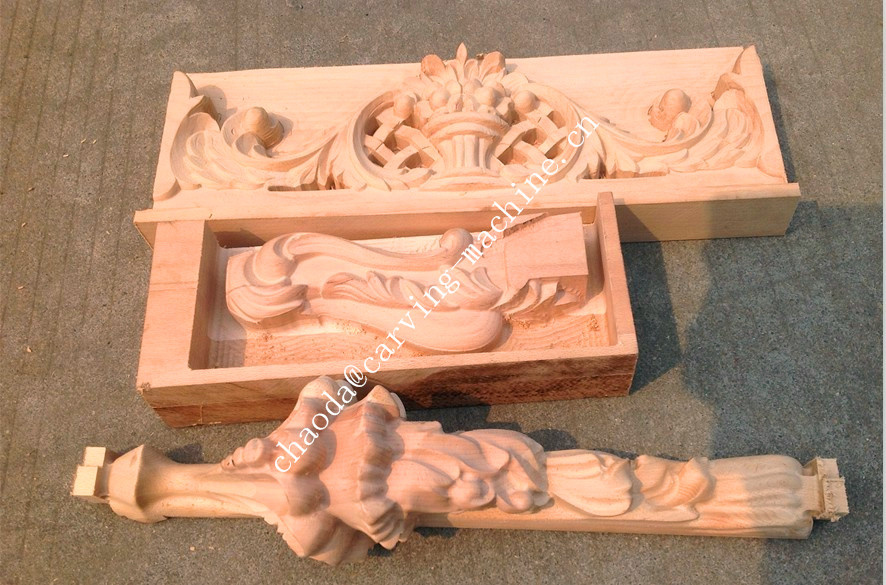

2.Sample photo
| Prod Model: | JCW1325R |
|---|---|
| Rotary: | 1300mm Long, 200 mm Diameter |
| Spindle: | 4.5kw Air Cooling Spindle |
| Motor: | Stepper Motor |
| Control: | DSP |
| Table: | Vacuum Suction |
| Size: | 1300*2500*300 mm (Optional) |
| X.Y Structure: | Gear Wheel Transmission, Hiwin Linear Guide Rail |
| Z Stucture: | Hiwin Ball Screw, Hiwin Guide Rail |
| Software: | Artcam / Type 3 / Powermill |
| Working Speed: | Max 15 M/Min |
| Spindle Layout: | Vertical |
| Spindle Number: | Single-Spindle |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Certification: | SGS |
A Factory You Can Trust:
Located in Linyi City, Shandong Province, Linyi CHAODA International CNC Technology Co., Ltd is a professional manufacturer of CNC Router Machine, Laser Engraving and Cutting Machine, Plasma Metal Cutting Machine, 3D Scanner, vacuum Forming Machine, etc.
Our factory was established in 2002 and covers 40000 Square meters.
We have experienced and professional engineers who devote themselves to machines' research, development, production, and after- sale service. Our machines have won praise from customers worldwide and with very good reputation in this field.
Quality and Safety:
We have implemented a strict and complete quality control system, which ensures that each machine can meet quality requirements of customers. Besides, all of our machines have been strictly inspected before shipment. Our machines have attained CE certificate with Quality Test report & BV certification.
Your satisfaction, Our eternal pursuit!
Our aim is to help customers realize their goals. We are making great efforts to achieve mutual benefit relationship and sincerely hope to cooperate with you!
