Router Table for 2D 3D 4D Engraving, Arc-Surfaces Engraving
| Price: | US $ 6000-22950/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal |
We are factory professional produce 3 axis,4 axis,5 axis rotary cnc routers,cnc laser,3D scanner etc.
Can do all kinds of 2d,3d,4d flat decoration products and big rotary 3d sculptures,pillars,moulds etc.
Machining on wood,foam,stone,marble,granite,plastic,PVC,composite boards,acrylic,glass,aluminum and many other material
Welcome for your inquiry and visit our factory!
router table for 2d 3d 4d engraving,arc-surfaces engraving
Can do all kinds of 2d,3d,4d flat decoration products and big rotary 3d sculptures,pillars,moulds etc.
Machining on wood,foam,stone,marble,granite,plastic,PVC,composite boards,acrylic,glass,aluminum and many other material
Welcome for your inquiry and visit our factory!
router table for 2d 3d 4d engraving,arc-surfaces engraving
Application
1.spindle rotate carving 0 to 180 degree,can make 2d 3d 4d engraving,arc-surfaces engraving,different surfaces engraving,
horizontal engraving,drilling and milling etc
2.very suitable for processing deep wood, foam, plastic, stone, wood mould works,
also can widely used for flat materials such as flat stone, wood, aluminum, copper, PVC and other hard & soft materials

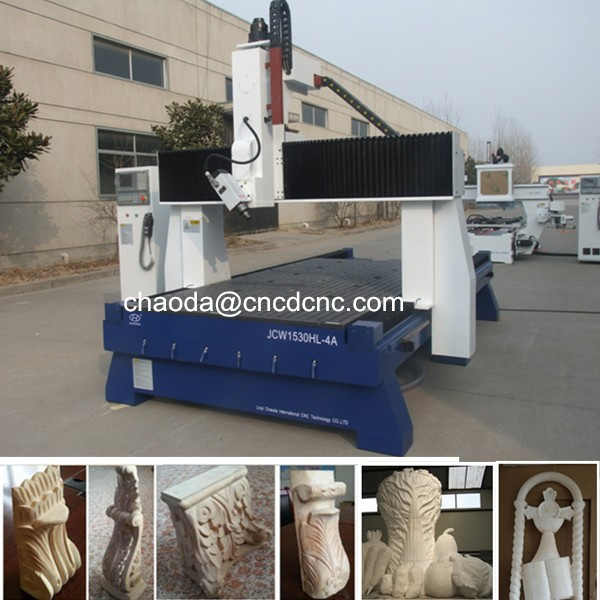

Model No.: JCW1530HL 4 axis
Specification( specified production cnc machines as your requests)
| Model No. | JCW1530HL 4 axis |
| X,Y,Z,B axis working area | 1300mmx2500mmx500mmxspindle swing +- 90 degree |
| Table surface | T-slot,clamps,vacuum table with vacuum pump |
| X structure | Rack and pinion,Taiwan HIWIN linear square rail |
| Y structure | Rack and pinion,Taiwan HIWIN linear square rail,Y double motor drive |
| Z structure | ball screw,Taiwan HIWIN linear square rail |
| Spindle Power | 6kw air cooling spindle(optional 9kw air cooling) |
| Spindle Rotating | 0-18000rpm |
| Operating System | 4 AXIS Ncstudio NK300 |
| Working Mode | Japan YASKAWA Servo motor and Drivers |
| Inverter | Taiwan Delta Inverter |
| Programming Software | Powermill |
| Voltage | AC380±15%,50HZ |
| Oil System | Automatically Lubrication System |
| Command Code | G code(*uoo,*nc,*mmg, *plt) |
| Net Weight | 4500KG |
| Spare Parts | 1 Software CD,1 Education CD,1 Data cable,1 Power cable,24Tools,2 Wrenches |
| Training | 2-3days free machine training and software training in our factory |

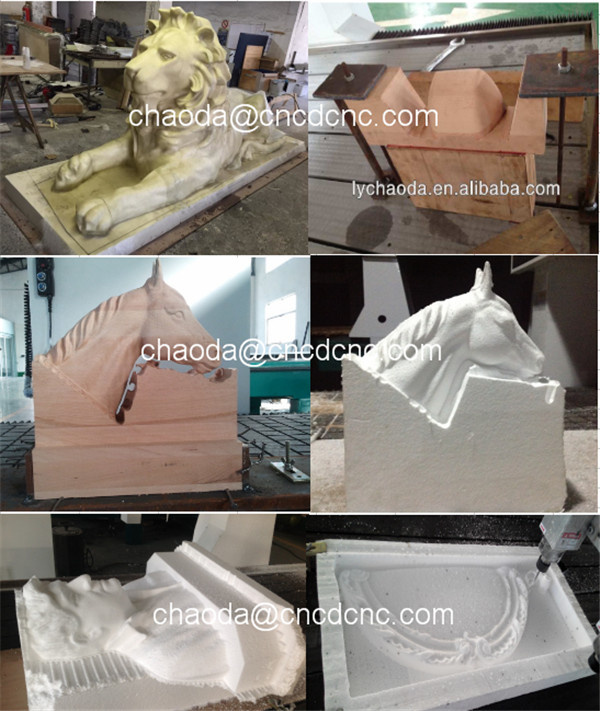

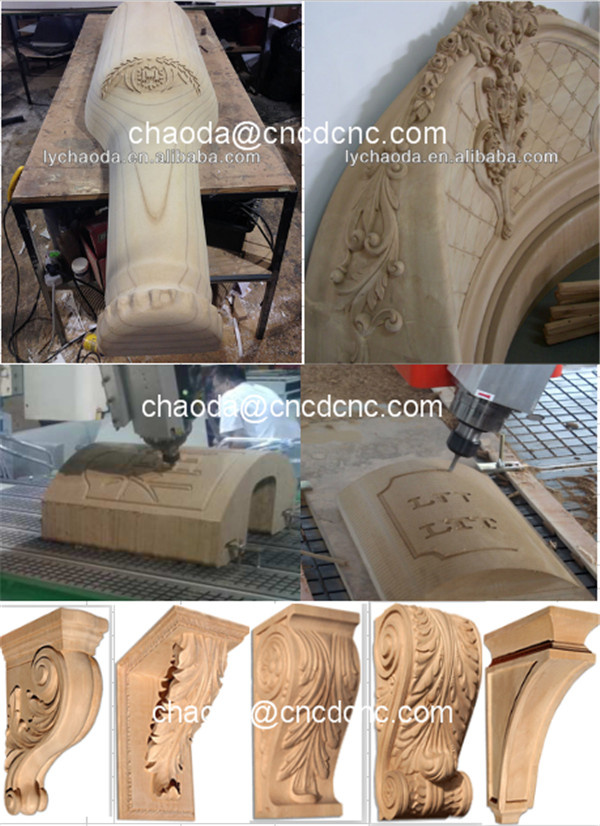

Sample Photos
Other related machines for reference

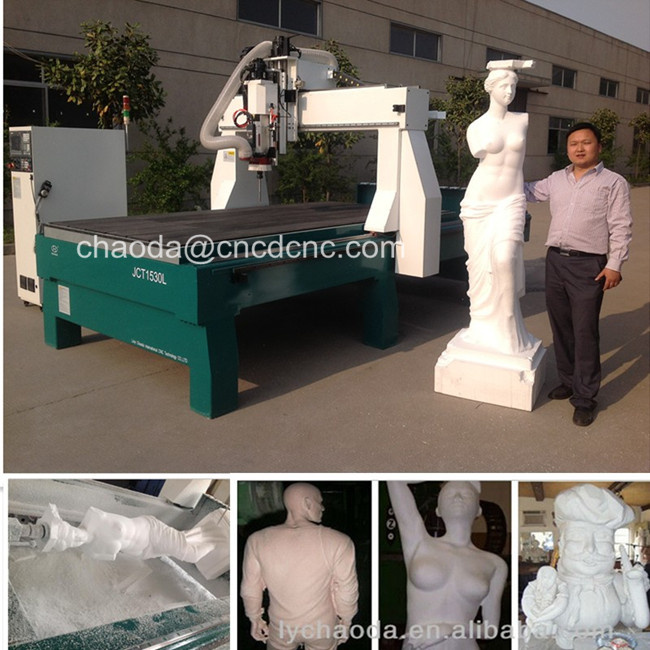

1).4 axis 3d sculptures cnc router,specially for produce big sculptures,animals,pillars etc

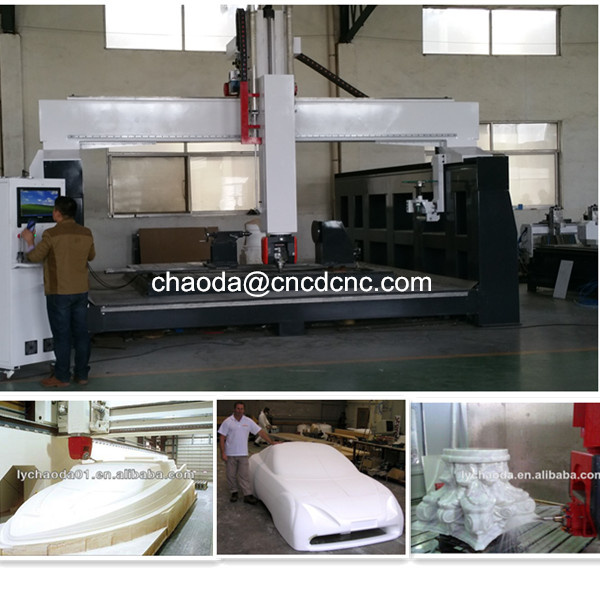

2).high Z axis 5 axis cnc router,produce deep complicated boat mould,air plane mould,big 3d model etc.

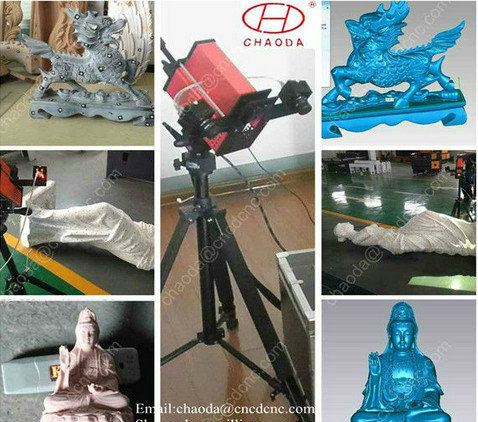

3).3d scanner,scan real objects fast get 3d design
Welcome for your inquiry!
Will providing you most suitable cnc machine solutions!
| Prod Model: | JCW1530HL 4 axis |
|---|---|
| Name: | Router Table for 2D 3D 4D Engraving,Arc-Surfaces E |
| Function: | 2D 3D Deep Mould Engraving,Arc-Surface Engraving |
| X,Y,Z ,B Axis Working Area: | 1300*2500*600mm*180degree(Customized) |
| X,Y,Z Structure: | Taiwan Hiwin Square Linear Guide Rail |
| X,Y Structure: | Rack and Pinion Transmission,High Speed and More S |
| Z Structure: | Imported Ball Screw,High Precision |
| Spindle: | 6kw Air-Cooling Spindle |
| Driving System: | Japan Yaskawa Servo Motor and Driver |
| Operating System: | 4 Axis Ncstudio Control System |
| Software: | Powermill |
| Spindle Layout: | Vertical |
| Spindle Number: | Single-Spindle |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Certification: | BV,TUV |
