Stone Engraving Machine CNC 3D / 3 Axis CNC Router for Stone, Wood, MDF, Aluminum, Glass, Foam
| Price: | Negotiable/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T |
stone engraving machine cnc 3d / 3d cnc router for wood,MDF,aluminum,stone,glass,foam
For cutting/engraving foam ,plastic,stone,wood,aluminum,Alucbond,ACP,copper,PVC ,glass etc
For making kitchen top / counter top / table top / basin table etc
For making furniture / mould / releif / sculpture / artwork / decoration / craft / mold etc
1.Technical Specifications
Description | Parameters |
Model | JCS1325L |
X,Y,Z axis working area | 1300*2500*300mm |
Whole structure | Welded Steel gantry structure |
Table surface | Clamp & T-slot & water tank |
X,Y,Z structure | Taiwan HIWIN Square linear guide rail |
X,Y structure | Rack and pinion transmission,high speed and more stable; Y -double motor drive |
Z structure | Imported ball screw, high precision |
Max. idling speed | 50m/min |
Max. working speed | 25m/min |
Repositioning Accuracy | ±0.05mm |
X Y Z working Accuracy | < 0.02mm |
Spindle |
5.5KW ATC water-cooling spindle |
Spindle rotating speed | 0-24000rpm/min |
Tool magazine | Linear ATC system, with 8pcs tool magazine |
Diameter of tools | Φ3.175 -Φ20 |
Collet size | ER 32 |
Operation language | G code (plt, mmg, uoo, bmp) |
Driving system | Japan servo motor and driver |
Operating system | Ncstudio control system |
Working voltage | AC380V, 3ph, 50-60Hz |
Software | UcancamV8 / Type3 / Artcam software (option) |

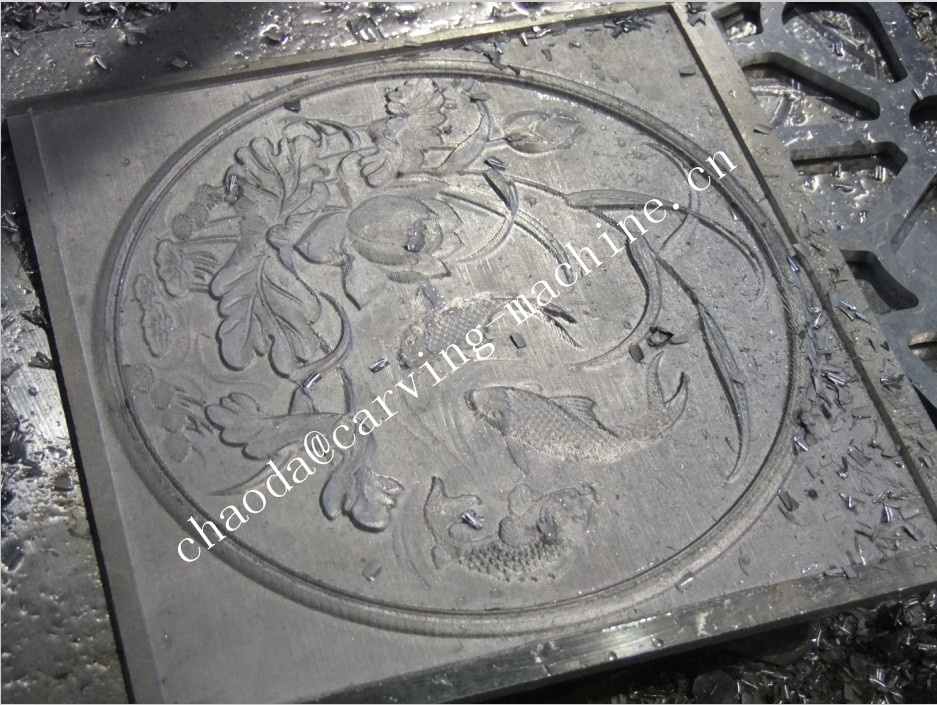

2.Sample photo
| Prod Model: | JCS1325L |
|---|---|
| Function: | Line Engraving |
| Application Material: | Marble |
| Automation: | Automatic |
| Control: | CNC |
| Current: | AC |
| Application: | Construction etc |
