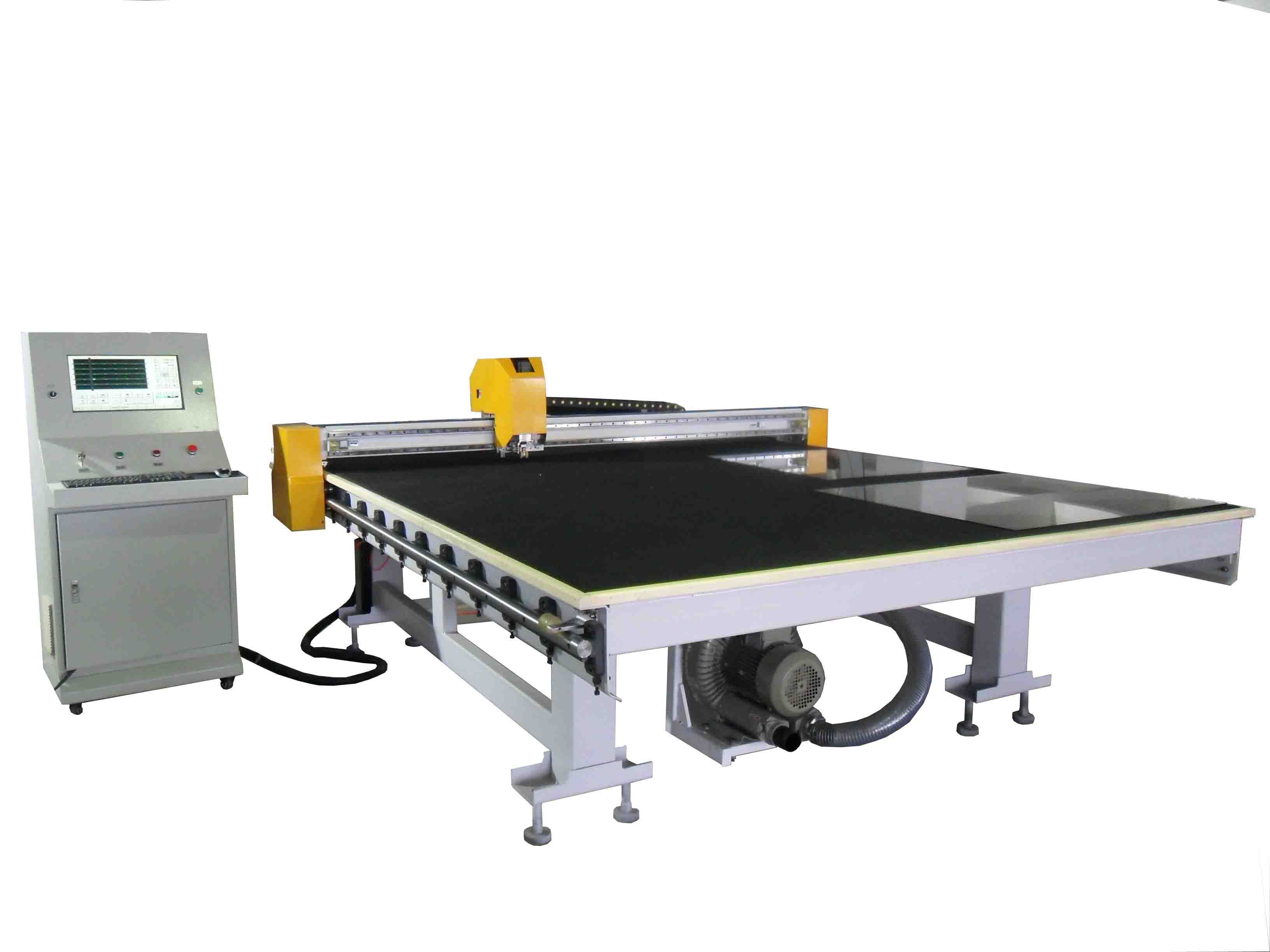

CNC Glass Cutting Machine/Cutting Table
| Price: | US $ 5000-40000set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1set |
| Pay Type: | L/C,T/T,Western Union,Money Gram |

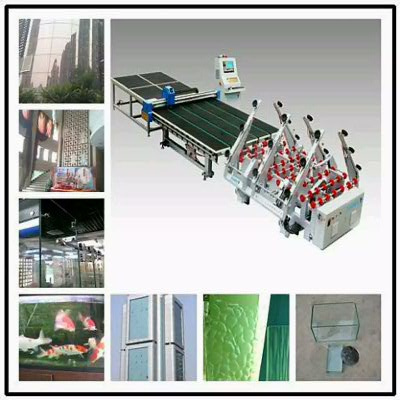

YG-CNC-3826 Automatic CNC Automatic Glass Cutting Line:
1. Features
This automatic CNC-shaped glass cutting machine allows users to cut out any shape of glass with high precision. AUTO CAD designed graphs and figures, automatic cutting, with all the cutting data fully computer controlled. The operator can edit the glass size for cutting with computer. The computer can optimize the cutting size, and give out the data for processing, driven the machine to cut glass sheet automatically in high speed and high precision.
A. Use professional computer software equipped professional cutting and optimized composing system. It features easy operation, high accuracy and fast speed. Cutting speed can be adjustable.
B. Cutting beam was imported from German high precision rack and rail. It features high accuracy.
C. Main parts were imported from brand products. It features high quality and long life.
D. Maintain and operation were easy for the machine. Edit the glass size for cutting with computer. The computer can optimize the cutting size, and give out the data for processing, driven the machine to cut
Glass sheet automatically in high speed and high precision.
Technical Parameter:
Cutting Speed: 0-120m/min
Accuracy: ≤ ± 0.20mm
Glass thickness: 3-25mm
Original glass sheet size: 3660x2440mm
Power: 9KW
Min. Cutting Size: 20x20mm
Cutting Accuracy-Parallelism: ± 0.15
Cutting Accuracy-Cater-corner: ± 0.20
Weight: 3200kg
Attached----Fan: HGX-3800X2sets
Attached----Stepping motors: 130BYG3501
Remarks: 220V, 50Hz, 600W or Customised
Overall Dimension: 4600(L)x3300(W)x860(H)mm
Transmission System: Axis X, Y and Z adopts servo motor made in Japan, and accurate gauge cutter device.
Cutting Holder: Air pressure and spring together, cutter head can rotate 360 degree, cut up and down. It can cut any shapes glass (line, round and shapes, etc)
Fuel System: Automatic oiling system, the oil pressure can be adjusted freely.
Conveyer System: Air float and synchronous automatic transmission device is convenient for glass movement.
Locating System: It is composed of mechanical locating system and optoelectronic scanning system. The optoelectronic scanning and cutting is automatically finished in the process of stream line operation, not need locating by operators.
Staff Requirement: 1 Person (Be familiar with knowledge of glass cutting and computer)
Guarantee & After-sales service:
1)Guarantee the complete machine for 18 months, except the consumable parts.
2) 24hour technical support by email or calling.
3) User-friendly English manual for machine using and maintaining.
Contact person: Ms. Sailing He
Office tel: 0086 531 66683798
Mobile: +86 18005318120
1. Features
This automatic CNC-shaped glass cutting machine allows users to cut out any shape of glass with high precision. AUTO CAD designed graphs and figures, automatic cutting, with all the cutting data fully computer controlled. The operator can edit the glass size for cutting with computer. The computer can optimize the cutting size, and give out the data for processing, driven the machine to cut glass sheet automatically in high speed and high precision.
A. Use professional computer software equipped professional cutting and optimized composing system. It features easy operation, high accuracy and fast speed. Cutting speed can be adjustable.
B. Cutting beam was imported from German high precision rack and rail. It features high accuracy.
C. Main parts were imported from brand products. It features high quality and long life.
D. Maintain and operation were easy for the machine. Edit the glass size for cutting with computer. The computer can optimize the cutting size, and give out the data for processing, driven the machine to cut
Glass sheet automatically in high speed and high precision.
Technical Parameter:
Cutting Speed: 0-120m/min
Accuracy: ≤ ± 0.20mm
Glass thickness: 3-25mm
Original glass sheet size: 3660x2440mm
Power: 9KW
Min. Cutting Size: 20x20mm
Cutting Accuracy-Parallelism: ± 0.15
Cutting Accuracy-Cater-corner: ± 0.20
Weight: 3200kg
Attached----Fan: HGX-3800X2sets
Attached----Stepping motors: 130BYG3501
Remarks: 220V, 50Hz, 600W or Customised
Overall Dimension: 4600(L)x3300(W)x860(H)mm
Transmission System: Axis X, Y and Z adopts servo motor made in Japan, and accurate gauge cutter device.
Cutting Holder: Air pressure and spring together, cutter head can rotate 360 degree, cut up and down. It can cut any shapes glass (line, round and shapes, etc)
Fuel System: Automatic oiling system, the oil pressure can be adjusted freely.
Conveyer System: Air float and synchronous automatic transmission device is convenient for glass movement.
Locating System: It is composed of mechanical locating system and optoelectronic scanning system. The optoelectronic scanning and cutting is automatically finished in the process of stream line operation, not need locating by operators.
Staff Requirement: 1 Person (Be familiar with knowledge of glass cutting and computer)
Guarantee & After-sales service:
1)Guarantee the complete machine for 18 months, except the consumable parts.
2) 24hour technical support by email or calling.
3) User-friendly English manual for machine using and maintaining.
Contact person: Ms. Sailing He
Office tel: 0086 531 66683798
Mobile: +86 18005318120
| Prod Model: | YG-CNC-3826 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Glass Thickness: | 1.5-19mm |
| Cutting Speed: | 2-3PCS/Min |
| Worker: | 1-2person |
| Type: | Glass Cutting Machine |
| Certification: | CE |
| Control System: | Industrial Computer |
Since established the company, relying on its mighty real development strenght, advanced management mode, and excellent officers and workers, becomes gradually the professional enterprise with the produces, profession management, sale and after-sales services in a whole. Now our equipments has been exported to many foreign countries. New generation alumi doors and windows that company develops and research concentrates on the industrial development in building materials in Chinese chemistry, can produce the every kind of products with such good functions as elegant appearance, varied colors, soundproof, watertightness and etc. And it can satisfy aluminum and pve doors and windows and insulating glass machine's building requests, improved the Chinese living environment.
