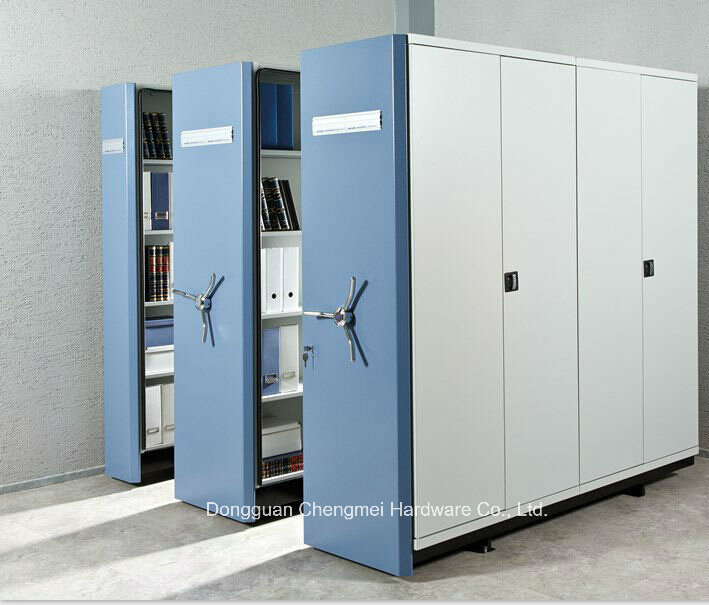

Metal Movable Rack Systems/Filing Cabinet (SIMPLY)
| Price: | US $ 165-170m3 |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 8m3 |
| Pay Type: | L/C,T/T |
Metal Movable rack system / Filing Cabinet
This Filing Cabinet storage system is the best solution for office storage space , a wide range of equipment and combining possibilities of particular elements ensures effective utilisation of even the samallest storage space , the rack is equipped with handwheel ,the mechaisms allows easy movement of the racks.individual units have built in safety control keys ,so they can stop at precise locations by user.
Product Festures
1. Filing cabinet is Effortless push-pull operation
2. Economical way to maximise your valuable storage space
3. Units can be easily extended, altered or relocated to support your changing storage needs
4. Available in single or tandem configurations
5. Low profile tracks are trolley and wheelchair friendly
6. Each system is lockable with a central lock when packed together
7. The built-in safety locks for mechanical type cabinets to safeguard users from accidentally trapped in aisles
Steel Mobile Filing Storage Cabinet/ Movable Mass Shelf /Compact shelving System details:
| Parameter Specification : | |||||||||
| Types: | Manual | Mechanical Wheel | Mechanical Handle | ||||||
| Material : | Electyolytic Galvanized Steel | ||||||||
| Surface treatment: | Epoxy Powder Coating | ||||||||
| Dimension : | Height : | 2150mm | |||||||
| Width : | (905*N)+165mm (N=number of Bays) | ||||||||
| Depth : | Fixed Unit : 450mm | ||||||||
| Movable Unit : 450/650/850mm | |||||||||
| Shelf Size : | W845xD395xH38mm(for 450/850); | W845xD295xH38mm(for 650); | |||||||
| No. of Shelf | Single Fixed /Single Movable =4n | ||||||||
| Double Movable =8n | |||||||||
| Aisle Size : | 600-1000mm | ||||||||
| Loading per Shelf: | Reinforced Shelf : | D295mm/85kg ; D395mm/100kg | |||||||
| Multi-purpose Shelf : | D395mm/70kg | ||||||||
| No. of Rails : | 1-3Bays : | 2pcs | 4-5Bays : | 3pcs | |||||
| 6-7Bays : | 4pcs | 8Bays : | 5pcs | ||||||
| Thickness: | Base | Back panel | Top panel | Front panel | Side panel | Shelf | Post | Rail | |
| 2mm | 1mm | 1mm | 1mm | 1mm | 0.8mm | 1.5mm | 2mm | ||
| Lock : | Steering wheel with brake lock ,more safety | ||||||||
| Post | 50x50mm square tube post of double plate with slots in 25mm increment | ||||||||
| Bumper : | Natural rubber of 30x16mm | ||||||||
| Rail : | Made of 25mm concrete steel with 0.8mm stainless steel sheet coating | ||||||||
| Wheel : | Iron die casting with anti-rust zinc coating | ||||||||
| Loading : 1000kg / Wheel | |||||||||
| Standard model of mobile filing shelving | |||||||||
| Type | Bay numbers | Single fixed | Single movable | Double movable | Double Movable | ||||
| Manual | 1 | SFP450-1 | SMP450-1 | DMP650-1 | DMP850-1 | ||||
| 2 | SFP450-2 | SMP450-2 | DMP650-2 | DMP850-2 | |||||
| Mechanical | 1 | SFM450-1 | SMM450-1 | DMM650-1 | DMM850-1 | ||||
| 2 | SFM450-2 | SMM450-2 | DMM650-2 | DMM850-2 | |||||
| 3 | SFM450-3 | SMM450-3 | DMM650-3 | DMM850-3 | |||||
| 4 | SFM450-4 | SMM450-4 | DMM650-4 | DMM850-4 | |||||
| 5 | SFM450-5 | SMM450-5 | DMM650-5 | DMM850-5 | |||||
| 6 | SFM450-6 | SMM450-6 | DMM650-6 | DMM850-6 | |||||
| 7 | SFM450-7 | SMM450-7 | DMM650-7 | DMM850-7 | |||||
| 8 | SFM450-8 | SMM450-8 | DMM650-8 | DMM850-8 | |||||
| Standard Depth: ( D ) | 450mm | 450mm | 650mm | 850mm | |||||
| Standard Hight: ( H ) | 2150mm | ||||||||
| Standard Width: ( W ) | 905*N (N=number of Bays) | ||||||||
| Thanks for your concern ! | |||||||||
| Prod Model: | SIMPLY |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: | White,Putty, Light Grey ,Beige |
| Surface Trement: | Epoxy Power Coating |
| Quality Warranty: | 10 Years |
| Delivery Time: | 2-3 Weeks |
| Port: | Shen Zhen Port |
| Material: | Metal (Secc) |
| Customized: | Accepted |
| Usage: | Office,Chain Store ,Musem& Artistic Storage |
