Professional Manufacturer of Pipeline Inspection Camera Made in China
| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 2/Piece |
| Pay Type: | L/C,T/T,Paypal,Western Union |
Professional manufacturer of pipeline inspection camera made in China
1. heavy-duty CCTV Inspection kit
Camera Head
*1/3" Color CCD 600 TV lines
* Camera size Φ 50mm X 88mm for pipe Φ 55mm to 600mm
* Waterproof: yes, IP68
* Self-levelling image
* Field of view: 90°
* Camera lighting: 18 high intensity white LED
* Camera window: sapphire glass
* 3 size Camera skids for different pipe diameter use
Stand Cable Reel
* Stainless steel Cable Reel size 770 X 830 X 360 mm
* 120m Φ 9 mm fiberglass rod push cable ( 60m optional)
2. handle inspection kit

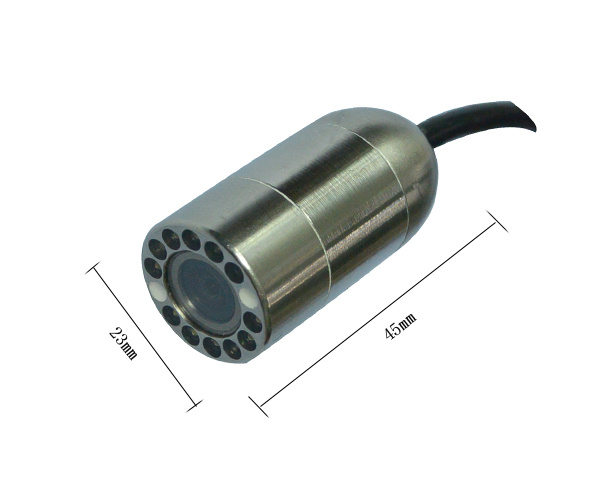

* stainless steel bullet waterproof camera Φ 23 X 45mm
* 30m soft cable
Monitor
*10 inch HD LED monitor
* Power supply DC 12V
DVR Control Box
* DVR power supply 12V DC work current 200mA
* Storage medium SD card ( 8G SD card included )
* Li-ion Battery pack power supply (18650 X 9 PCS 6600mAH)
* Charging time 5 hours, working time 6 hours
* USB keyboard output jack
Carrying case
* ABS engineering carrying case size: 520mm X 435mm X 200mm
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum
1. heavy-duty CCTV Inspection kit
Camera Head
*1/3" Color CCD 600 TV lines
* Camera size Φ 50mm X 88mm for pipe Φ 55mm to 600mm
* Waterproof: yes, IP68
* Self-levelling image
* Field of view: 90°
* Camera lighting: 18 high intensity white LED
* Camera window: sapphire glass
* 3 size Camera skids for different pipe diameter use
Stand Cable Reel
* Stainless steel Cable Reel size 770 X 830 X 360 mm
* 120m Φ 9 mm fiberglass rod push cable ( 60m optional)
2. handle inspection kit
* stainless steel bullet waterproof camera Φ 23 X 45mm
* 30m soft cable
Monitor
*10 inch HD LED monitor
* Power supply DC 12V
DVR Control Box
* DVR power supply 12V DC work current 200mA
* Storage medium SD card ( 8G SD card included )
* Li-ion Battery pack power supply (18650 X 9 PCS 6600mAH)
* Charging time 5 hours, working time 6 hours
* USB keyboard output jack
Carrying case
* ABS engineering carrying case size: 520mm X 435mm X 200mm
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum
| CCD Aluminum camera head data | ||||||
| camera size | Φ50mm×89mm | |||||
| camera housing material | aluminum | |||||
| camera window | sapphire glass | |||||
| connecting type | golden pins slip-ring connection | |||||
| sensor | 1/3" color CCD | |||||
| field of view | 90° | |||||
| resolution | PAL:720H×576V NTSC: 720H×480V; | |||||
| horizontal definition | 420TVL | |||||
| picture | Self-leveling | |||||
| S/N rate | >48dB(AOC on) | |||||
| electronic shutter | 1/50(1/60) - 1/100000 s | |||||
| sensitivity | 0.01Lux | |||||
| video output | 1.0 Vp-p / 75Ω | |||||
| lighting | 18 high intensity white LED, brightness adjustable | |||||
| waterproof | yes, class IP68 | |||||
| working voltage | DC 12V | |||||
| working current | 63mA Max (LED Max: 120mA) | |||||
| operating temperature | -10ºC~60ºC | |||||

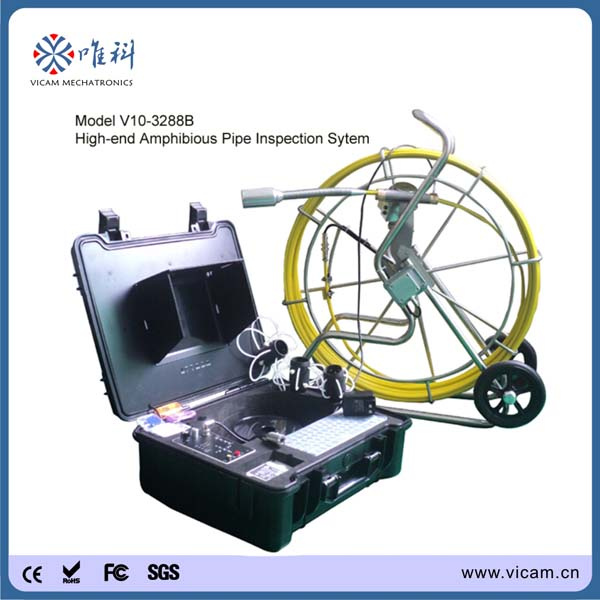

| Prod Model: | V10-3288B |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: | CE, FCC, RoHS, UL, SGS |
| Monitor Size: | 10 Inch HD LED |
| Camera Diameter: | 50X88mm |
| Cable Diameter: | 9mm |
| Cable Length: | 60 to 120m Optional |
| Type: | CCTV Camera |
| Sensor: | CCD |
| Style: | Bullet Camera |
| Feature: | High Definition |
| Technology: | Infrared |
| Horizontal Resolution: | 600tvl |
| Kind: | Fixed Focus |

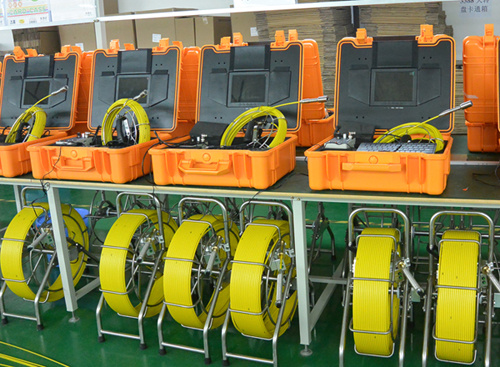

Vicam Mechatronics Co., Ltd is a professional manufacturer located in Shenzhen, South of China, specialising in the design, manufacturer and assembly of video inspection systems. Focusing on the pipeline inspection cameras and underwater cameras system, we have experience over 8 years and a complete product range.
Our main product range include portable pipeline video inspection system, underground sewer pipe inspection system and special inspection cameras i. e. Vehicle engine inspection, chimney inspection and CCTV robots for complex applications and hazardous area rated environment.
Our main market is Europe, US, Australia, South America etc. And all products approved with CE, RoHS, UL, FCC certificates.
We have complete after sale service policy. Each of Vicam product has 1 year quality guarantee. Also we provide technology support to all our clients and 3% free charge spare parts for each shipment.
Our main product range include portable pipeline video inspection system, underground sewer pipe inspection system and special inspection cameras i. e. Vehicle engine inspection, chimney inspection and CCTV robots for complex applications and hazardous area rated environment.
Our main market is Europe, US, Australia, South America etc. And all products approved with CE, RoHS, UL, FCC certificates.
We have complete after sale service policy. Each of Vicam product has 1 year quality guarantee. Also we provide technology support to all our clients and 3% free charge spare parts for each shipment.
