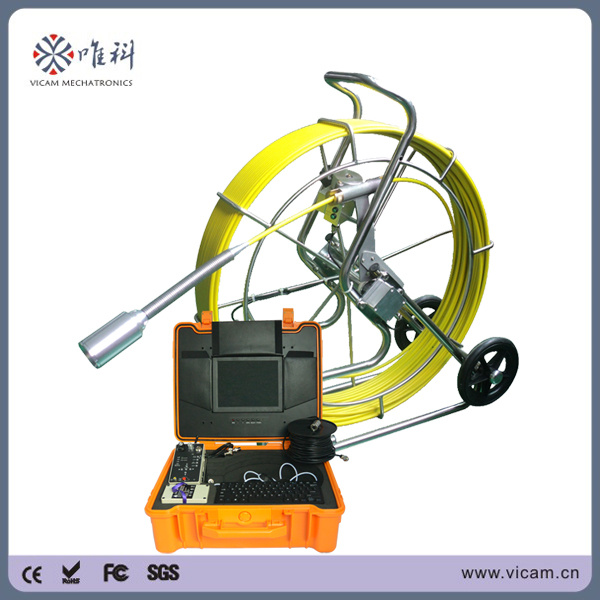

Sewer/Water/Drain Video Pipe Inspection Camera
| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 2/Piece |
| Pay Type: | T/T,Paypal,Western Union |
SewerWaterDrain Video Pipe Inspection Camera With Cable Reel And Monitor
1. Heavy-duty CCTV Inspection kit
Camera Head
*1/3" Color CCD 600 TV lines
* Camera size Φ 50mm X 88mm for pipe Φ 55mm to 600mm
* Waterproof: Yes, IP68
* Self-levelling image
* Field of view: 90°
* Camera lighting: 18 high intensity white LED
* Camera window: Sapphire glass
* 3 size Camera skids for different pipe diameter use
Stand Cable Reel
* Stainless steel Cable Reel size 770 X 830 X 360 mm
* 120m Φ 9 mm fiberglass rod push cable ( 60m optional)
2. Handle inspection kit
* stainless steel bullet waterproof camera Φ 23 X 45mm
* 30m soft cable
Monitor
*10 inch HD LED monitor
* Power supply DC 12V
DVR Control Box
* DVR power supply 12V DC work current 200mA
* Storage medium SD card ( 8G SD card included )
* Li-ion Battery pack power supply (18650 X 9 PCS 6600mAH)
* Charging time 5 hours, working time 6 hours
* USB keyboard output jack
Unit control carrying case
* ABS engineering carrying case size: 520mm X 435mm X 200mm
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum
1. Heavy-duty CCTV Inspection kit
Camera Head
*1/3" Color CCD 600 TV lines
* Camera size Φ 50mm X 88mm for pipe Φ 55mm to 600mm
* Waterproof: Yes, IP68
* Self-levelling image
* Field of view: 90°
* Camera lighting: 18 high intensity white LED
* Camera window: Sapphire glass
* 3 size Camera skids for different pipe diameter use
Stand Cable Reel
* Stainless steel Cable Reel size 770 X 830 X 360 mm
* 120m Φ 9 mm fiberglass rod push cable ( 60m optional)
2. Handle inspection kit
* stainless steel bullet waterproof camera Φ 23 X 45mm
* 30m soft cable
Monitor
*10 inch HD LED monitor
* Power supply DC 12V
DVR Control Box
* DVR power supply 12V DC work current 200mA
* Storage medium SD card ( 8G SD card included )
* Li-ion Battery pack power supply (18650 X 9 PCS 6600mAH)
* Charging time 5 hours, working time 6 hours
* USB keyboard output jack
Unit control carrying case
* ABS engineering carrying case size: 520mm X 435mm X 200mm
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum
| Camera Head |
* Camera size Φ 50mm X 88mm for pipe Φ 55mm to 600mm * Camera head casing material stainless steel * Camera lens window material sapphire glass * 1/3" Color CCD Self-levelling Camera 600 TV lines * Field of view 90° * Camera lighting 18 pcs high intensity white LED |
||||||
| Soft cable reel |
* Camera head size Φ23 x 45mm for pipe Φ 25mm and up * 30m soft cable reel * stainless Camera Head |
||||||
| Monitor |
*10" HD LED screen * Power supply DC 12V |
||||||
| DVR Control Box |
* 12V DVR work current 200mA * Storage medium SD card (8G SD card) * Keyboard USB jack |
||||||
| Battery pack & Charger |
* 660mA Li-ion Battery pack power supply * AC110-240V to DC12V charger * Charging time 5 hours, working time 6 hours |
||||||
| Cable Reel with Meter Counter |
* Stainless steel Cable Reel size Φ 770 X 830 X 360 mm * 120m Φ9mm fiberglass rod push cable (60m optional) * Counter device error rate less than 0.1% |
||||||
| Carrying case |
* ABS Engineering Carrying case: 520mmX 433mm X 200mm * Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum * Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum |
||||||
| Features and Benefits | * Self-leveling waterproof camera can easily checks all pipeline problem inside | ||||||
| * Dual camera head fit different pipe size inspection | |||||||
| * 6600mAH Li-ion battery support the unit working more than 5 hours | |||||||
| * New Design DVR control box easy to record and replay video, photo and sound;USB jack for keyboard supports to typewrite real time any information you need | |||||||
| Prod Model: | V10-3288B |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Type: | Drain Sewer Inspection Video Camera |
| Feature: | Waterproof / Weatherproof |
| Camera Window: | Sapphire Glass |
| Camera Head Size: | 23 X 45mm |
| Field Of View: | 120° |
| Monitor: | 7 Inch TFT LCD Monitor |
| Li-ion Battery: | 4400mA |
| Cable Length: | 20/30/40m |
| Carrying Case: | 460mm X 340mm X 190mm |
| Certification: | RoHS |
Vicam Mechatronics Co., Ltd is a professional manufacturer located in Shenzhen, South of China, specialising in the design, manufacturer and assembly of video inspection systems. Focusing on the pipeline inspection cameras and underwater cameras system, we have experience over 8 years and a complete product range.
Our main product range include portable pipeline video inspection system, underground sewer pipe inspection system and special inspection cameras i. e. Vehicle engine inspection, chimney inspection and CCTV robots for complex applications and hazardous area rated environment.
Our main market is Europe, US, Australia, South America etc. And all products approved with CE, RoHS, UL, FCC certificates.
We have complete after sale service policy. Each of Vicam product has 1 year quality guarantee. Also we provide technology support to all our clients and 3% free charge spare parts for each shipment.
Our main product range include portable pipeline video inspection system, underground sewer pipe inspection system and special inspection cameras i. e. Vehicle engine inspection, chimney inspection and CCTV robots for complex applications and hazardous area rated environment.
Our main market is Europe, US, Australia, South America etc. And all products approved with CE, RoHS, UL, FCC certificates.
We have complete after sale service policy. Each of Vicam product has 1 year quality guarantee. Also we provide technology support to all our clients and 3% free charge spare parts for each shipment.
