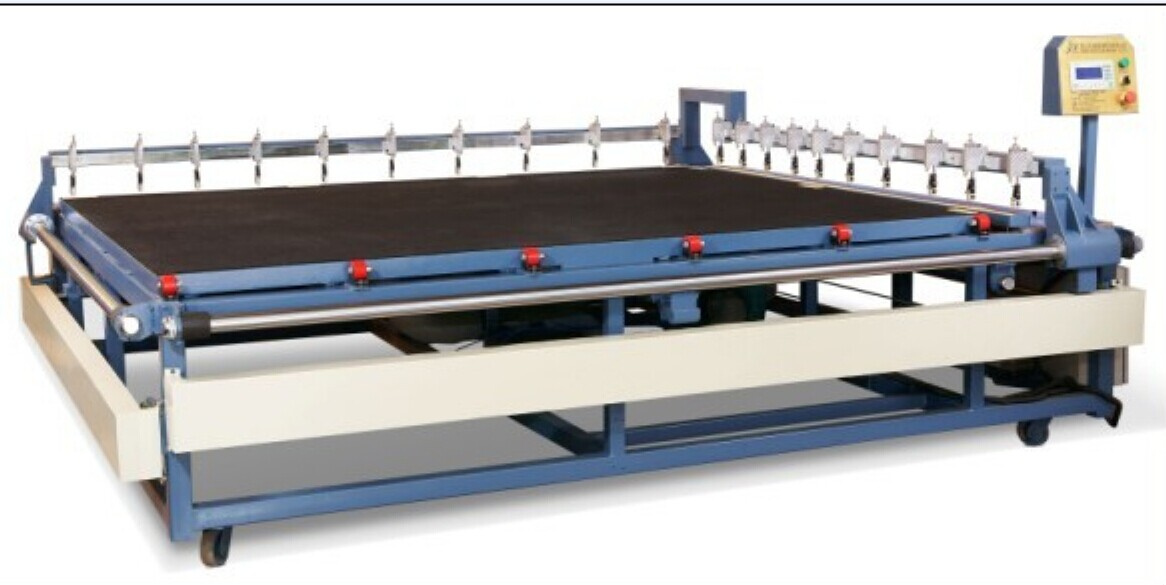

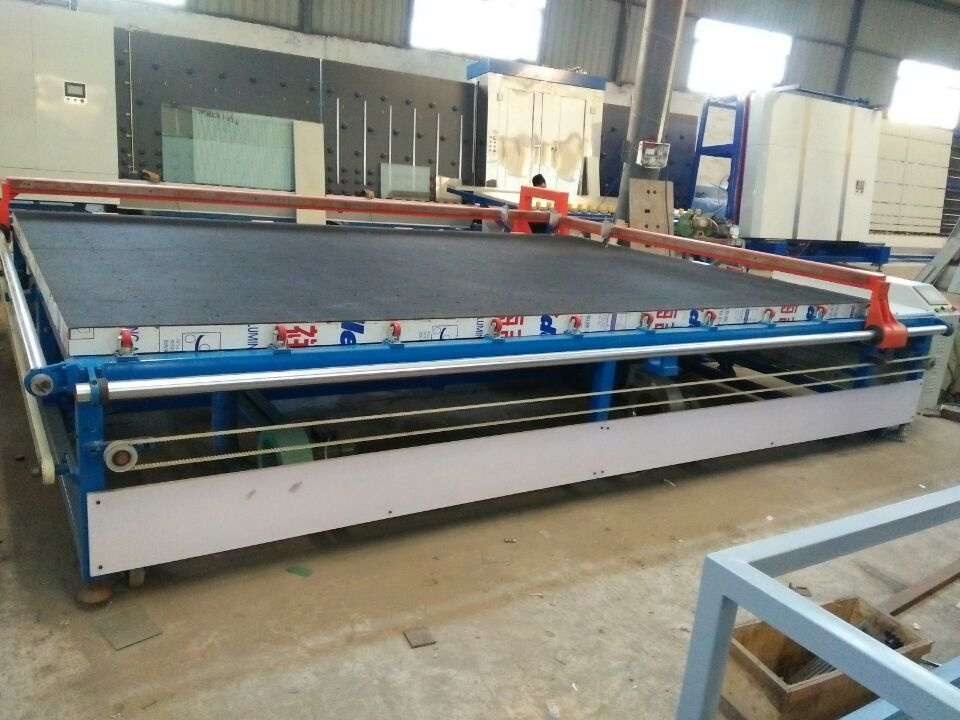

Semi-Automatic Glass Mosaic Cutting Table
| Price: | US $ 1-6000set |
|---|---|
| Trade Terms: | FOB,CFR,EXW |
| Min Order: | 1set |
| Pay Type: | L/C,T/T,Western Union,Money Gram |
JLQG-2121 Semi-Auto Glass Cutting Table:
Introduction:
Semi-Auto glass cutting table in the manual cutting machine basis with synchronous transmission, Automatic operation stop function. Two beams don't need to manually pull, simply press
The boot device on the control panel, gear driven double beam automatically cut. The operation light,
Simple, sooth, reduce labor intensity and improve production efficiency.
Features:
1) Stepper motors, CNCN control, speed and stroke can be adjusted.
2) LCD screen display, operation is easy and intuitive.
3) The use of imported plastic panels, cutting table and easy to overcome damp deformation and
Other defects.
4) The use of imported rails and bearings, effectively guarantee the stability of the equipment
And accuracy.
5) Containing flotation device.
Performance:
Cutting parallelism: ≤ ± 0.01mm
Diagonal: ≤ ± 0.20mm
Cutting thickness: 2-15mm
Dimensions: 3350X2750X1200mm (approximate)
Table size: 2100X2100mm
Max. Cutting size: 2000X2000mm
Min. Cutting size: 20X20mm
Cutting efficiency: 2-3 large pieces /Min or 30-60m/Min
Worker: 1-2 worker
We can do according to customers' actual needs.
Working range:
Furniture glass, hollow glass, glass mosaic, appliance glass, curtain wall glass, frame glass,
Solar glass etc.
Guarantee & Aftersales service:
1)Guarantee the complete machine for 18 months, except the consumable parts.
2) 24hour technical support by email or calling.
3) User-friendly English manual for machine using and maintaining.
Contact person: Ms. Sailing He
Mobile: +86 18005318120
Introduction:
Semi-Auto glass cutting table in the manual cutting machine basis with synchronous transmission, Automatic operation stop function. Two beams don't need to manually pull, simply press
The boot device on the control panel, gear driven double beam automatically cut. The operation light,
Simple, sooth, reduce labor intensity and improve production efficiency.
Features:
1) Stepper motors, CNCN control, speed and stroke can be adjusted.
2) LCD screen display, operation is easy and intuitive.
3) The use of imported plastic panels, cutting table and easy to overcome damp deformation and
Other defects.
4) The use of imported rails and bearings, effectively guarantee the stability of the equipment
And accuracy.
5) Containing flotation device.
Performance:
Cutting parallelism: ≤ ± 0.01mm
Diagonal: ≤ ± 0.20mm
Cutting thickness: 2-15mm
Dimensions: 3350X2750X1200mm (approximate)
Table size: 2100X2100mm
Max. Cutting size: 2000X2000mm
Min. Cutting size: 20X20mm
Cutting efficiency: 2-3 large pieces /Min or 30-60m/Min
Worker: 1-2 worker
We can do according to customers' actual needs.
Working range:
Furniture glass, hollow glass, glass mosaic, appliance glass, curtain wall glass, frame glass,
Solar glass etc.
Guarantee & Aftersales service:
1)Guarantee the complete machine for 18 months, except the consumable parts.
2) 24hour technical support by email or calling.
3) User-friendly English manual for machine using and maintaining.
Contact person: Ms. Sailing He
Mobile: +86 18005318120
| Prod Model: | JLQG-2121 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: | Jlqg-2121 |
| Max. Cutting Size: | 2000X2000mm |
| Min. Cutting Sie: | 20X20mm |
| Cutting Thickness: | 2-15mm |
| Cutting Parallism: | <±0.01 |
| Cutting Efficency: | 2-3 Large Pieces/Min or 30-60m/Min |
| Worker: | 1-2 Worker |
| Type: | Insulating Glass Production Line |
| Certification: | CE |
| Control System: | PLC |
