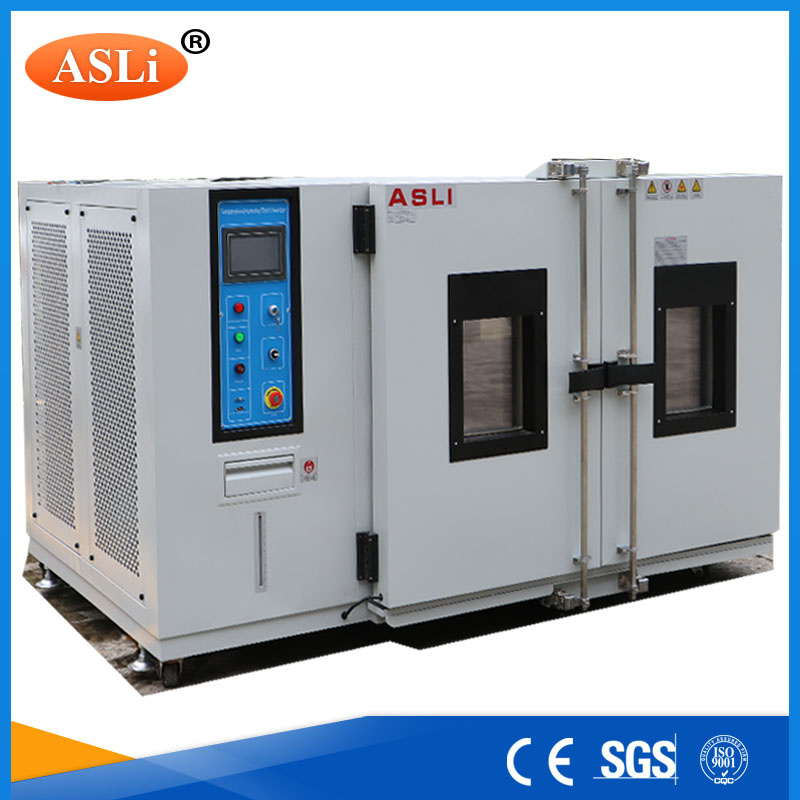

Walk in Temperature Test Chamber/ Temperature and Humidity Control Cabinet
| Price: | US $ 20000-100000Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1Set |
| Pay Type: | L/C,T/T |
Application:
Walk In Temperature Test Chamber/ Temperature And Humidity Control Cabinet is used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of big test samples, such as electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.
Temperature And Humidity Control Cabinet Features :
1. Graceful appearance, circularly shaped body, surface treated with mist strips and plane handle with no reaction. Easy to operate, safe and reliable.

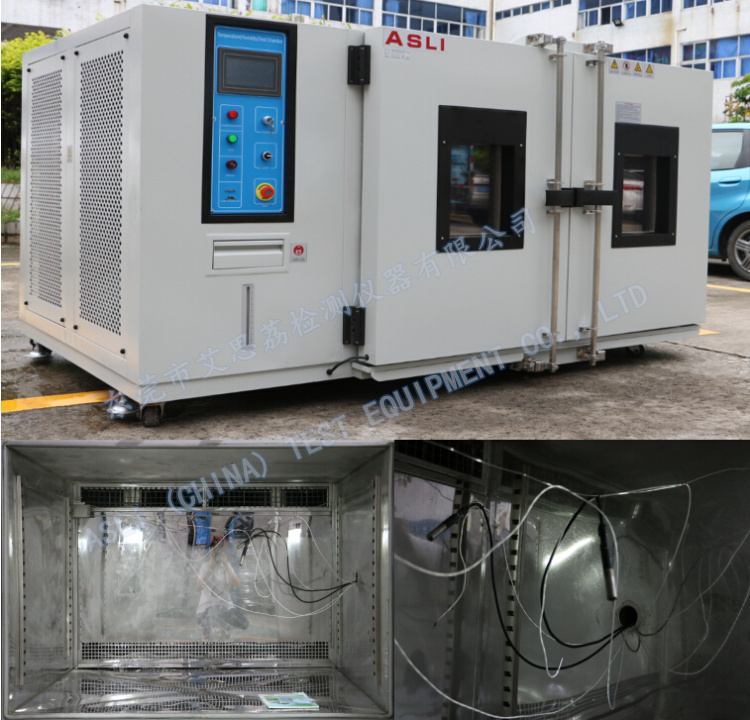

2. Rectangular double-paned viewing window for the observation of sample under test with interior lights
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5. French Tecumseh brand is used as compressor, with environment friendly refrigeration R23,R404A
6.LCD display screen, capable of displaying the set point and actual value at the same time
7. The control unit has the functions of multiples segment program editing, with ramp rates control of temperature and humidity.
8. Casters are provided for ease of mobility, with strong positioning screws.
Central Control Unit:
1.LCD touch screen controller;
2.Machine conversational mode is used for control system;
3.Two lines of input & two lines of output control mode for controlling temperature and humidity separately; Can display set point, program curve, working time, and working condition of heaters, refrigeration units & fan.
4.Test procedure automatic operation and PID parameter self-tuning function;
5.Can automatically combine the subsystem like heating system, humidification/dehumidification system, refrigeration system, circulation fan, super temperature alarming to operate, to ensure high quality of the whole temperature/humidity control system;
6.Control system has automatic self-checking, self-diagnosis, fault display and alarming function.
Main Parameters:
1.Display Mode: LCD display, touch control
2.Display Accuracy: temperature 0.1%, huidity0.1%
3.Set Accuracy: temperautre0.1ºC, huidity0.1%
4.Display Resolution: temperautre0.1ºC, humidity0.1%
5.Sampling Time: 32 S/Time;
6.Graphical Display: Full display of setting and program curve
7.Program Capacity: Max.269 programs,each program with 50 Segment, max.13450 cycles

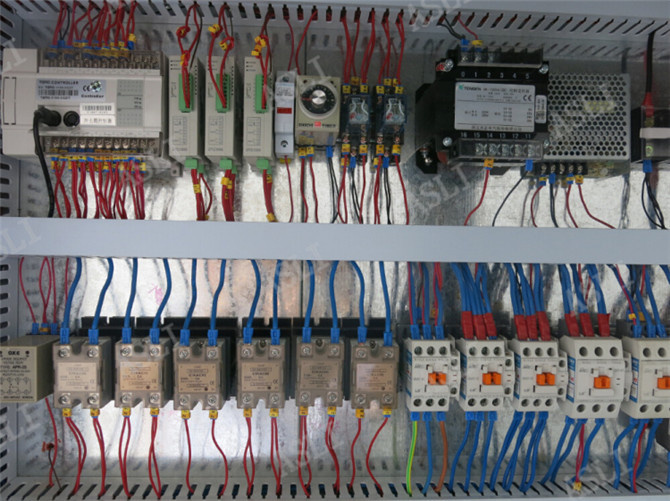

Electric Cabinet:
Our service
1.High quality guarantee.
2.Shipment with professional documents.
3.Packing as your request, with photo before shipment.
4.Reply within 48 hours and provide solution within 3 working days
5.Professional after-service from our engineers.
6.Warranty period 12 monthes.
Certificate of these the machine:
China official 3rd party calibration report
CE certiification
Any question or more information need, please do not hesitate to let us know, thank you .
Looking forward to hearing from you and thanks in advance.
Walk In Temperature Test Chamber/ Temperature And Humidity Control Cabinet is used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of big test samples, such as electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.
| Technical Parameters: | |
| Model | THR-volume (low-temperature options : A ~ F) |
| Inner Dimensions(cm) | Customers designated space size and design |
| Temperature Range | Low Temperature(A:25degree C B: 0degree C C:-20degree C D:-40degree C E:-60degree C F:-70degree C ) High Temperature 80degree C (80degree C ~150degree C is optional) |
| Humidity Range | 20%~98%R.H. (10%-98% R.H. / 5%-98% R.H ,is a special optional condition, need dehumidifier) |
| Indication Resolution/ Distribution Uniformity of Temperature & Humidity | 0.1degree C ; 0.1% R.H/±2.5degree C ; ±3.5% R.H. |
| Control Accuracy of Temperature and Humidity | ±0.5degree C ; ±2.5% R.H. |
| Temperature Rising/ Falling Velocity | Temperature rising approx. 0.1~3.0°C/min; temperature falling approx. 0.1~1.0°C/min; ( The Falling Velocity Min.1.0°C /min is a optional) |
| Cooling System | Water cooled |
| Protection Devices | Fuse-free switch, overloading protection switch for compressor,high and low voltage coolant protection switch, over-humidity & over-temperature protection switch, fuses, fault warning system, water short storage warning protection |
| Optional Accessories | Slope for cart , Recorder, Water Purifier, Dehumidifier |
| Compressor | French Tecumseh Brand, Germany Bizer Brand |
| Power | AC 380 V(±10%),50/60HZ ,3 phase 5 Lines |
Temperature And Humidity Control Cabinet Features :
1. Graceful appearance, circularly shaped body, surface treated with mist strips and plane handle with no reaction. Easy to operate, safe and reliable.
2. Rectangular double-paned viewing window for the observation of sample under test with interior lights
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5. French Tecumseh brand is used as compressor, with environment friendly refrigeration R23,R404A
6.LCD display screen, capable of displaying the set point and actual value at the same time
7. The control unit has the functions of multiples segment program editing, with ramp rates control of temperature and humidity.
8. Casters are provided for ease of mobility, with strong positioning screws.
Central Control Unit:
1.LCD touch screen controller;
2.Machine conversational mode is used for control system;
3.Two lines of input & two lines of output control mode for controlling temperature and humidity separately; Can display set point, program curve, working time, and working condition of heaters, refrigeration units & fan.
4.Test procedure automatic operation and PID parameter self-tuning function;
5.Can automatically combine the subsystem like heating system, humidification/dehumidification system, refrigeration system, circulation fan, super temperature alarming to operate, to ensure high quality of the whole temperature/humidity control system;
6.Control system has automatic self-checking, self-diagnosis, fault display and alarming function.
Main Parameters:
1.Display Mode: LCD display, touch control
2.Display Accuracy: temperature 0.1%, huidity0.1%
3.Set Accuracy: temperautre0.1ºC, huidity0.1%
4.Display Resolution: temperautre0.1ºC, humidity0.1%
5.Sampling Time: 32 S/Time;
6.Graphical Display: Full display of setting and program curve
7.Program Capacity: Max.269 programs,each program with 50 Segment, max.13450 cycles
Electric Cabinet:
Our service
1.High quality guarantee.
2.Shipment with professional documents.
3.Packing as your request, with photo before shipment.
4.Reply within 48 hours and provide solution within 3 working days
5.Professional after-service from our engineers.
6.Warranty period 12 monthes.
Certificate of these the machine:
China official 3rd party calibration report
CE certiification
Any question or more information need, please do not hesitate to let us know, thank you .
Looking forward to hearing from you and thanks in advance.
| Prod Model: | THR-Volume |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Temperature Range: | -70~+150 C |
| Humidity Range(Optional): | 20%~98%R.H. |
| Temp. Rising Speed: | 0.1~3.0 C/Min |
| Temp. Falling Speed: | 0.1~1.5 C/Min |
| Analytic Accuracy: | 0.1 Degree C; 0.1% R.H |
| Uniformity: | +/-2.5degree C; +/-;3.5% R.H. |
| Control Accuracy: | +/-0.5degree C; +/-2.5% R.H. |
| Cooling System: | Water Cooling |
| Cooling System: | Water Cooled |

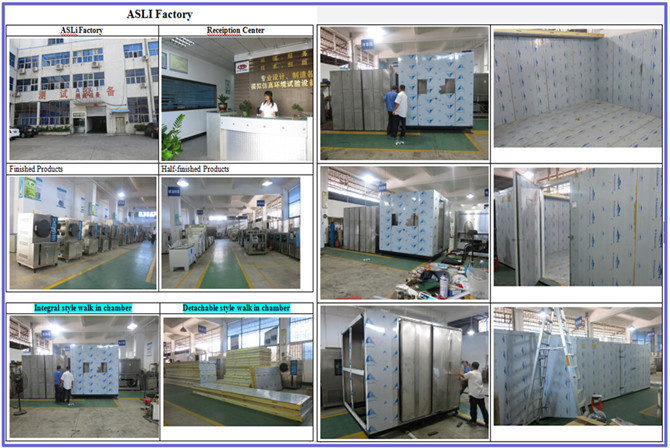

Established in 1988, ASLi (China) Test Equipment Co., Ltd is specialized in manufacturing a variety of quality inspection instruments, testing equipments and other high-tech products which mainly include: Programmable constant Temperature & Humidity Test Chamber, High & Low Temperature Test Chamber, High & low Temperature Testers with Rapid Temperature Change, Walk-In humidity & temperature test chamber, Cool/Thermal shock test chamber, Salt spray chamber, aging tester, drying oven, xenon lights resistant to climate testing machine, UV resistant to climate testing machine, ozone aging test machine, sand and dust testing machine, tension tester, high and low temperature testing machine, servo carton compression tester, mechanical vibration tester and other quality testing instruments. Thanks to several decades of R&D efforts, the company has established itself as a leading provider of testing instruments of the industry, playing a crucial role in the research and development of high-quality and high-value products within the industry.
