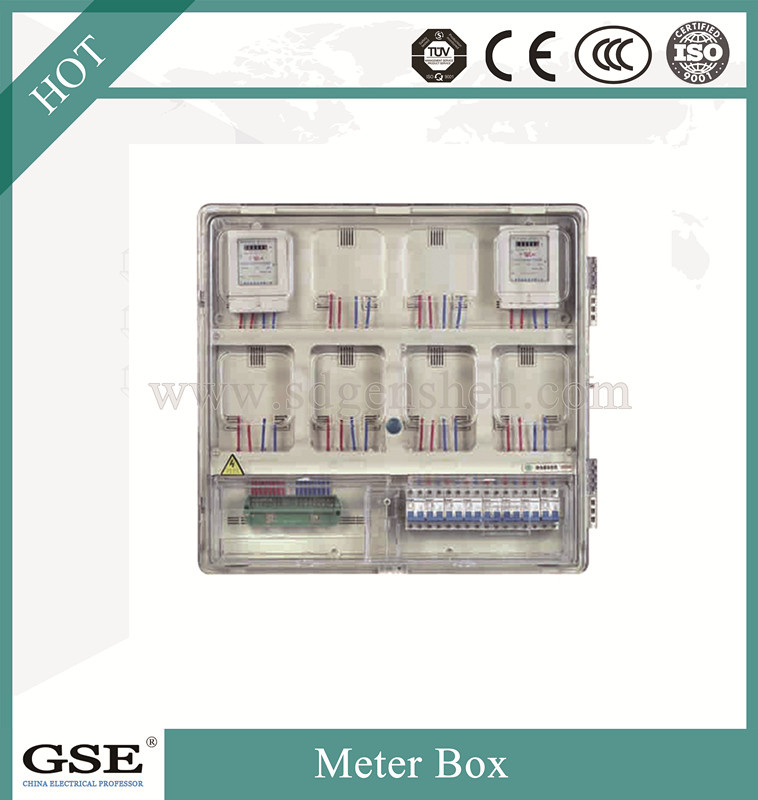

Waterproof IP44 Metal Electricity Single Eight Position Meter Cabinet
| Price: |
US $ 45-60/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
PC-801 |
| Material: |
PC |
| Feature: |
Mechanical, Electronic |
| Display: |
Digital |
| Installation: |
Direct Connected |
| Usage: |
Standard Electric Energy Meter |
| Electric Equipment: |
Single-phase |
| Theory: |
Electronic Meter |
| Measured Signal: |
Pulse Peak |
| Type: |
Power Meter |
Product Description
Waterproof IP44 Metal Electricity Single Eight Position Meter Cabinet The partner of State Grid Corporation
The partner of National Railway Administration of China
ISO9001, TUV, and CE standard 1.Product Introduce
PC meter box with a new type of environmental protection engineering polycarbonate (PC) manufacturing, with high insulation performance, good transparency, UV resistance, aging resistance, acid rain, salt spray resistance, low temperature resistance, impact resistance and other properties. With good ventilation, rain, heat and other functions. Normal service life of more than 20 years.
The meter box adopts the integrated design idea, a table to sixteen all kinds of electric energy meter and the measuring circuit is assembled in a closed box integration, not only has small occupied space, easy installation and management, but also can stop stealing hit metering device, preventing electricity stealing.
The PC meter box is beautiful in appearance, and the proportion is even, the line is smooth, and it can be conveniently and firmly installed on the concrete wall. Box components compact structure, reasonable layout, clear and smooth lines. The box cover hook, screw and padlock box and interlock. Only the reading function, people do not need to open the tube can directly see the abnormal phenomenon inside, so as to improve the safety of electric exclusion, so as to realize the safe use of electricity, the preventive management objectives.
2. Product Specification| Type | Single Phase Eight Position Meter Box |
| Material | PC |
| AC Frequency | 50HZ or 60HZ |
| Nominal Voltage | 220V, 380V, 690V |
| Electric Current | 10A-225A |
| Ambient Temperature | -25 -+80ºC, and the average temperature difference is not more than +35ºC; |
| Clean Air | Relative humidity at 40 ºC not exceeding 80%. A higher relative humidity is allowed when the temperature is low;
Less Than 10000 Meters Above Sea Level; |
| Altitude | ≤10000m |
| Ability to Withstand Earthquakes | Intensity 8 degrees |
| Note | The product is our standardized product.We would provide it with you as the parameter if you have other parameter. |
3.Characteristic
3.1. Box Cover's Material: Polycarbonate (PC) by the engineering plastics, flame retardant PC/ABS engineering plastic.
3.2. Box's structure: The box consists of a box cover and a box bottom, a box cover and a box bottom with multi-point concealed hook fixed structure can be matched with various accessories, lock, box thickness is 3mm (12.16 bit metering box thickness 3.5mm;
3.3. Fully Transparent Upper Cover design: the table case is transparent, the window door is integrated with the box cover, which is convenient for the management, supervision, inspection and maintenance of the electric power management department;
3.4. Large capacity: single body box can meet the requirements of the 16 table installation, can be expanded to 20 meters, to meet the requirements of 10mm2 copper core power line;
3.5.The upper cover and the base are provided with hinges, which can be opened at 1800, and the upper cover is not needed to be taken out of the box;
3.6. In and out of the hole: watch box into and out of the hole with waterproof connector;
Shutter design: taking into account the need for heat dissipation, both sides of the metering box with shutter.
3.7. Design: built-in to prevent small animals into the protective net. The top of the table box is sealed to prevent the rainwater from entering.

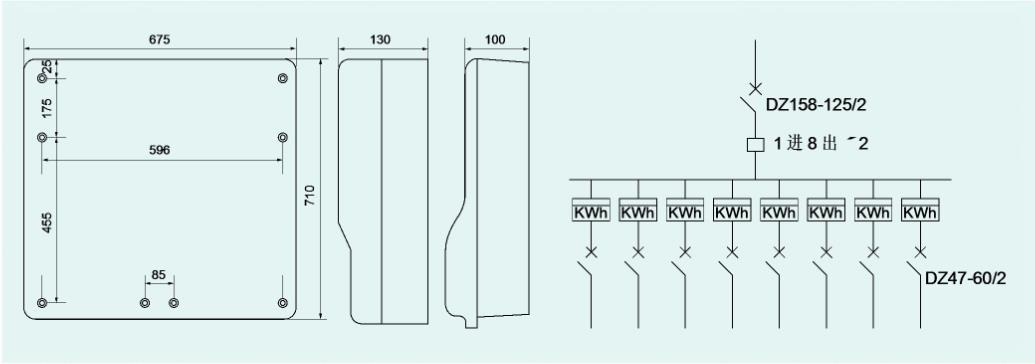

4.Size And Circuit Diagram
5.Package
5.Our Company

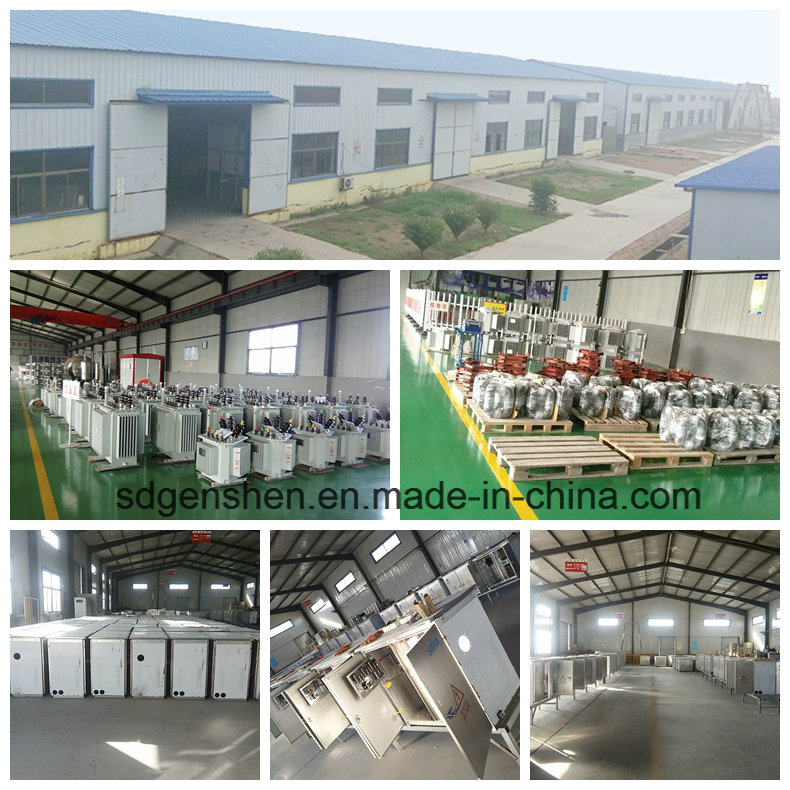

Shandong Province Yangxin Genshen Electric Co., Ltd was founded in 2012 and her subsidiary,Qingdao Yaoutongxing International Trading Co.Ltd, is founded in Qingdao.We are specialized in JP Cabinet, Power Distribution, Electric Energy Metering box, High Voltage Switch Cabinet, Box Type Substation, Transformer, Protection Devices, Low voltage switchgear and other electrical equipment and accessories with ISO9001, TUV, and CE standard in China, which is the partner of State Grid Corporation and National Railway Administration of China.We have always cooperated with China's government.We guarantee the highest quality of our products and services with every order.Taking exceptional care with every request is not only our policy, it's our promise.We will at all times be known as professional and honorable operators who are as good as our word.
6.Certificate
7.RFQ 7.1.Q: Are you manufacturer?
A: Yes, we are manufacturer. Our factory is in Binzhou City, Shandong Province.
7.2.Q: Can I get guarantee of products?
A: Yes, every product is 1 year quality warrantee under customer correct using the products.
7.3.Q: Do you have any Certificate?
A: Yes. Each of our unit has CCC certificate. All the electric parts with CE certificate, If you need any other Certificate, we can help you to get it.
7.4.Q: How to buy it? What about the delivery?
A: Please contact me by email or online, let me know your situation, I will give you professional solution.We have shipping agent can choosing the cheapest and fastest delivery. FOB,CIF, C&F or EXW are no problem for us.
7.5.Q: How can I pay you?
A: T/T, L/C is very well used.
7.6.Q: What about the production?
A: Produce time is 4~6weeks.
7.7.Q: Could you offer some spare parts?
A: Yes, no problem.
7.8.Q: What about the maintenance?
A: All the goods past the test, maintenance is very easy.
