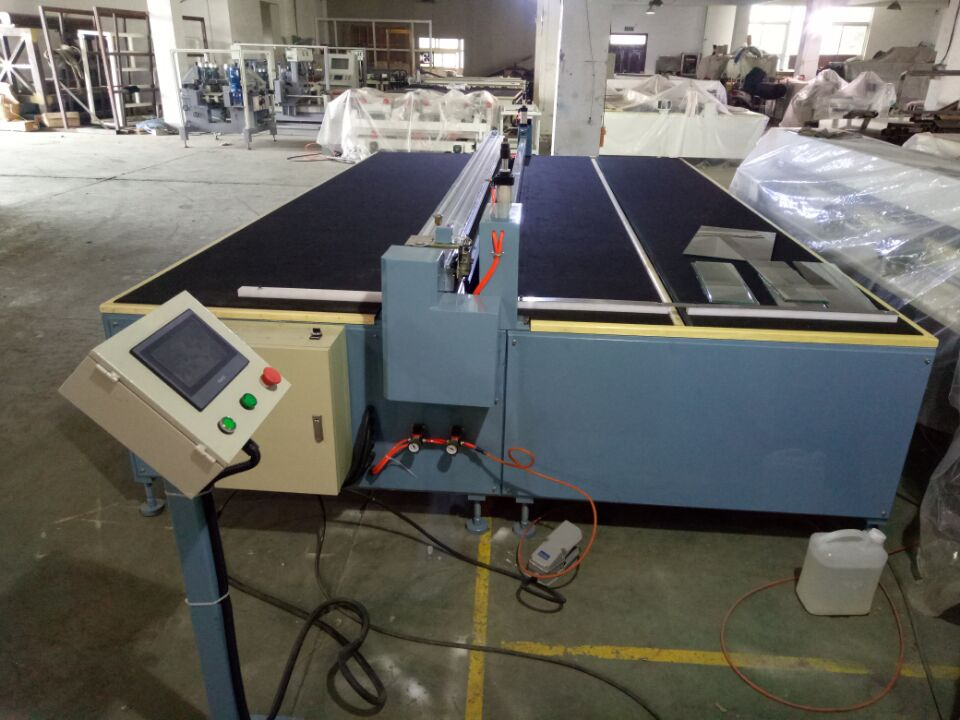

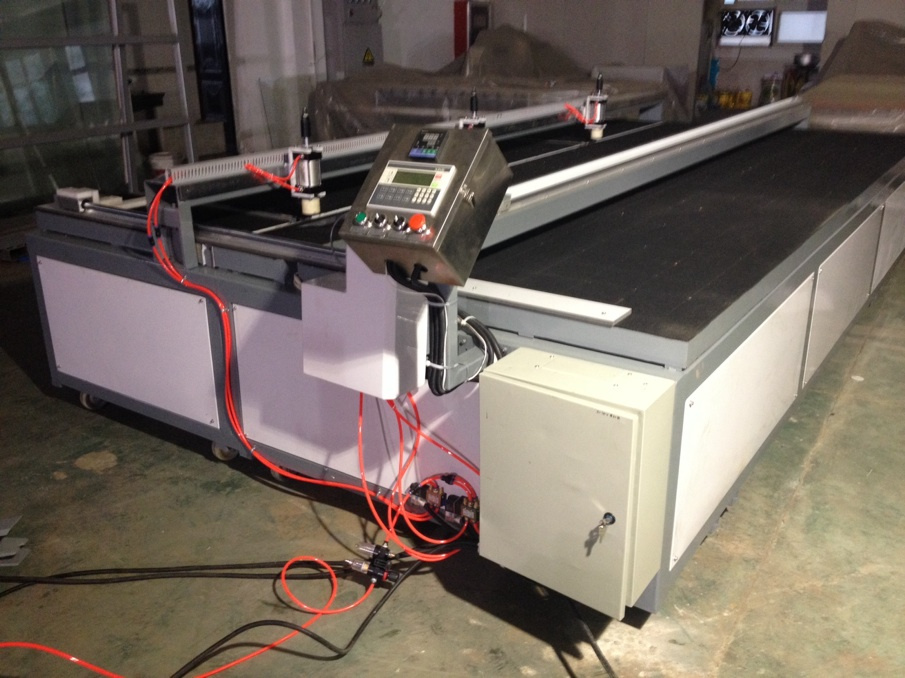

Ygl-3826 Semi-Automatic Laminated Glass Cutting Table
| Price: | US $ 8000-12000set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1set |
| Pay Type: | L/C,T/T,Western Union,Money Gram |
YGL - 3826 Semi-automatic laminated glass cutting table:
Machine description:
Semi-automatic single bridge laminated glass cutting machine cutting table with high efficiency and accuracy of the advantages of accurate. Suitable for large plate glass to cut into small pieces. Gas floating mesa, with glass turn table, glass are free to promote and rotation. Pull on the grid to the size of the cutting position, and promote the glass near the gate position, on the foot switch, stepping motor drive the double beam (and) run automatically cutting, cutting after completion of the pneumatic bit automatic position.
Working Range:
Suitable for laminated glass, electric glass, building curtain wall glass deep processing of homework.
Principle of work
Double beam mobile cutting way
(1) Walking part: For X axis (3660 mm side) linear movement up and down. Pedaled foot switch, X axis stepper motor drive up and down in a quick head cutting, cutting head up after the completion of rapid return to the origin.
(2) Set size parts: Y direction assembly linear bearing and ruler parallel, with its position on the grid, can be arbitrary regulation cutting size
(3)The mesa with pneumatic push rod, helps to break tablet.
(4) Any of the above actions adopted PLC central control, display interface using Chinese liquid show.
Basic parameters:
Cutting maximum size: 3660 * 2440 (mm) (special specifications can be customized according to customer needs)
Cutting minimum size: 200 * 200 (mm) (special specifications can be customized according to customer needs)
Work surface: 3800 * 2600 (mm)
Cutting thickness: 2-19 mm
Operator: 1-2 people
Cutting efficiency: 1-2 large/minutes
Cutting parallel degree: + / - 0.5 mm or less
Diagonal: + / - 0.8 mm or less
Fan power: 3 kw
Motor power: 1.5 kw
Overall size: 4600*3200*1250mm
Packing size: 4600*1650*1800
Weight(about): 800kgs
Payment terms: 30% prepayment, balance 70% before shipping.
Delivery time: Within 25 working days
Packing: Seaworthy packing or customised.
Guarantee & Aftersales service:
1)Guarantee the complete machine for 18 months, except the consumable parts.
2) 24hour technical support by email or calling.
3) User-friendly English manual for machine using and maintaining.
Contact person: Ms. Sailing He
Mobile: +86 18005318120
Machine description:
Semi-automatic single bridge laminated glass cutting machine cutting table with high efficiency and accuracy of the advantages of accurate. Suitable for large plate glass to cut into small pieces. Gas floating mesa, with glass turn table, glass are free to promote and rotation. Pull on the grid to the size of the cutting position, and promote the glass near the gate position, on the foot switch, stepping motor drive the double beam (and) run automatically cutting, cutting after completion of the pneumatic bit automatic position.
Working Range:
Suitable for laminated glass, electric glass, building curtain wall glass deep processing of homework.
Principle of work
Double beam mobile cutting way
(1) Walking part: For X axis (3660 mm side) linear movement up and down. Pedaled foot switch, X axis stepper motor drive up and down in a quick head cutting, cutting head up after the completion of rapid return to the origin.
(2) Set size parts: Y direction assembly linear bearing and ruler parallel, with its position on the grid, can be arbitrary regulation cutting size
(3)The mesa with pneumatic push rod, helps to break tablet.
(4) Any of the above actions adopted PLC central control, display interface using Chinese liquid show.
Basic parameters:
Cutting maximum size: 3660 * 2440 (mm) (special specifications can be customized according to customer needs)
Cutting minimum size: 200 * 200 (mm) (special specifications can be customized according to customer needs)
Work surface: 3800 * 2600 (mm)
Cutting thickness: 2-19 mm
Operator: 1-2 people
Cutting efficiency: 1-2 large/minutes
Cutting parallel degree: + / - 0.5 mm or less
Diagonal: + / - 0.8 mm or less
Fan power: 3 kw
Motor power: 1.5 kw
Overall size: 4600*3200*1250mm
Packing size: 4600*1650*1800
Weight(about): 800kgs
Payment terms: 30% prepayment, balance 70% before shipping.
Delivery time: Within 25 working days
Packing: Seaworthy packing or customised.
Guarantee & Aftersales service:
1)Guarantee the complete machine for 18 months, except the consumable parts.
2) 24hour technical support by email or calling.
3) User-friendly English manual for machine using and maintaining.
Contact person: Ms. Sailing He
Mobile: +86 18005318120
| Prod Model: | YGL-3826 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: | Ygl-3826 |
| Voltage: | 380V/50Hz or Customised |
| Max. Glass Cutting Size: | 3660X2440mm |
| Min. Glass Cutting Size: | 200X200mm |
| Glass Cutting Thickness: | 2-19mm |
| Work Surface: | 3800X2600mm |
| Fan Power: | 3kw |
| Type: | Glass Cutting Machine |
| Certification: | CE |
| Control System: | PLC |
