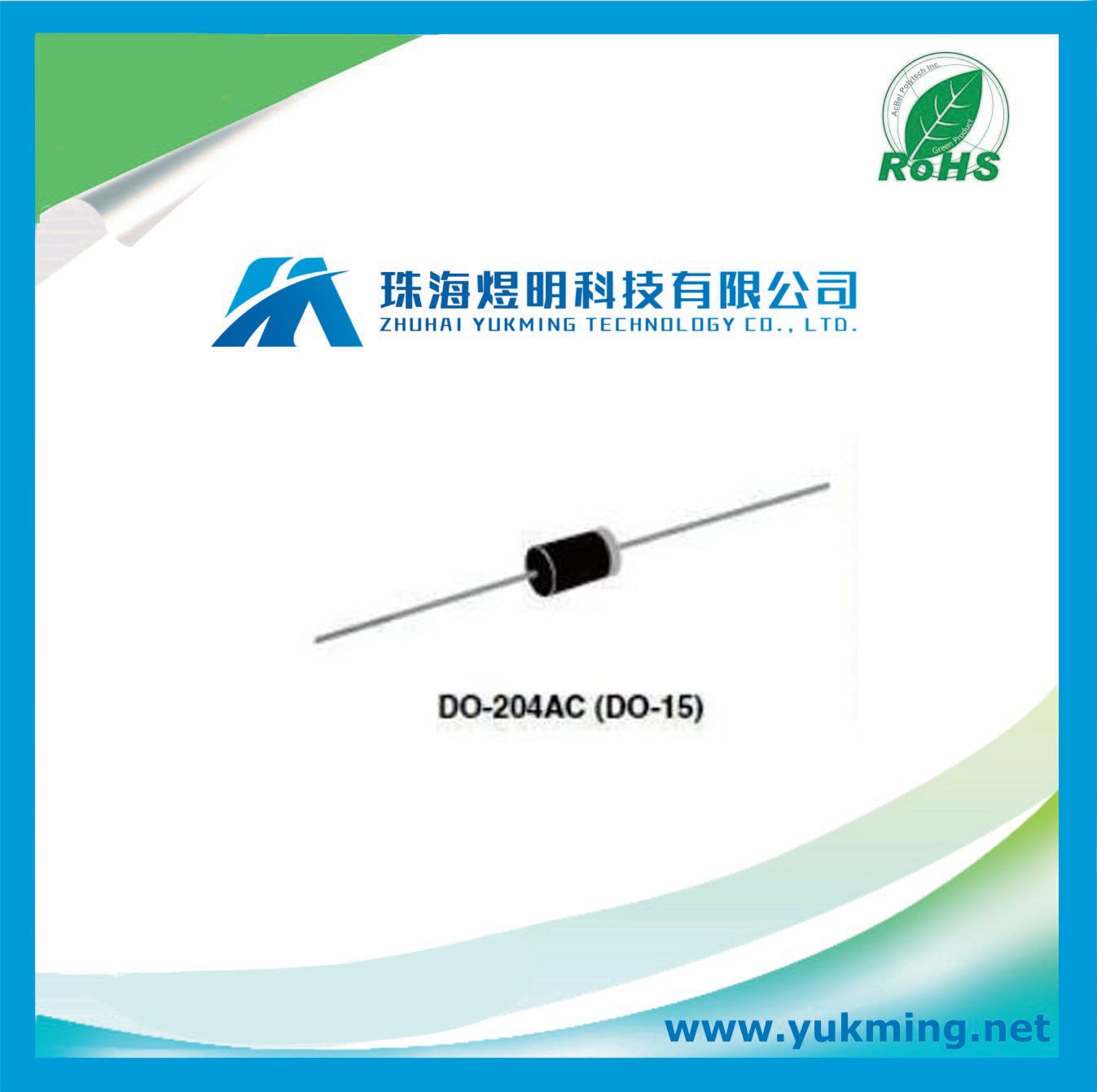

Diode P6ke6.8A-E3/54 of Electronic Component for PCB Assembly
| Price: | US $ 0.02/Piece |
|---|---|
| Min Order: | 2000/Piece |
| Pay Type: | L/C,T/T,D/P,Paypal |
| Lead time | 2 to 3 days after receiving the payment. |
| Remark | 100% New and original ; 30 days warranty |
| Payment | Heng Seng Bank (Hong Kong), Paypal, |
| Shipment | DHL ,TNT ,FEDEX, UPS or any other express |
MANUFACTURER
Vishay
PRODUCT CATEGORY
TVS
DESCRIPTION
Diode TVS Single Uni-Dir 5.8V 600W 2-Pin DO-15 T/R
Implement surge protection with this P6KE6.8A-E3/54 TVS diode from Vishay. Its test current is 10 mA. Its maximum leakage current is 1000 μA. This device's maximum clamping voltage is 10.5 V and minimum breakdown voltage is 6.45 V. Its peak pulse power dissipation is 600 W. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 175 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery.
Specifications
EU RoHS Compliant
Direction Type Uni-Directional
Maximum Reverse Stand-Off Voltage (V) 5.8
Maximum Reverse Leakage Current (uA) 1000
Maximum Clamping Voltage (V) 10.5
Maximum Peak Pulse Current (A) 57.1
Minimum Breakdown Voltage (V) 6.45
Test Current (mA) 10
Peak Pulse Power Dissipation (W) 600
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 175
Operating Junction Temperature (°C) -55 to 175
Number of Elements per Chip 1
Packaging Tape and Reel
ESD Protection Unknown
Package Diameter (mm) 3.6(Max)
Mounting Through Hole
Package Length (mm) 7.6(Max)
PCB changed 2
Standard Package Name DO-204-AC
Supplier Package DO-15
Pin Count 2
Lead Shape Through Hole
FEATURES
• Glass passivated chip junction
• Available in uni-directional and bi-directional
• 600 W peak pulse power capability with a
10/1000 µs waveform, repetitive rate (duty
cycle): 0.01 %
• Excellent clamping capability
• Very fast response time
• Low incremental surge resistance
• Solder dip 260 °C, 40 s
• Component in accordance to RoHS 2002/95/EC
and WEEE 2002/96/EC

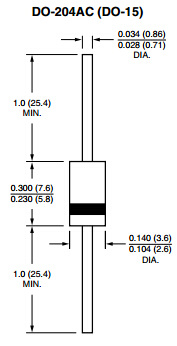

PACKAGE OUTLINE DIMENSIONS in inches (millimeters)
| Prod Model: | P6KE6.8A-E3/54 |
|---|---|
| Maximum Reverse Stand-off Voltage (V): | 5.8 |
| Maximum Reverse Leakage Current (Ua): | 1000 |
| Maximum Clamping Voltage (V): | 10.5 |
| Maximum Peak Pulse Current (a): | 57.1 |
| Minimum Breakdown Voltage (V): | 6.45 |
| Test Current (Ma): | 10 |
| Peak Pulse Power Dissipation (W): | 600 |
| Number Of Elements Per Chip: | 1 |
| Shape: | Do-204AC |
