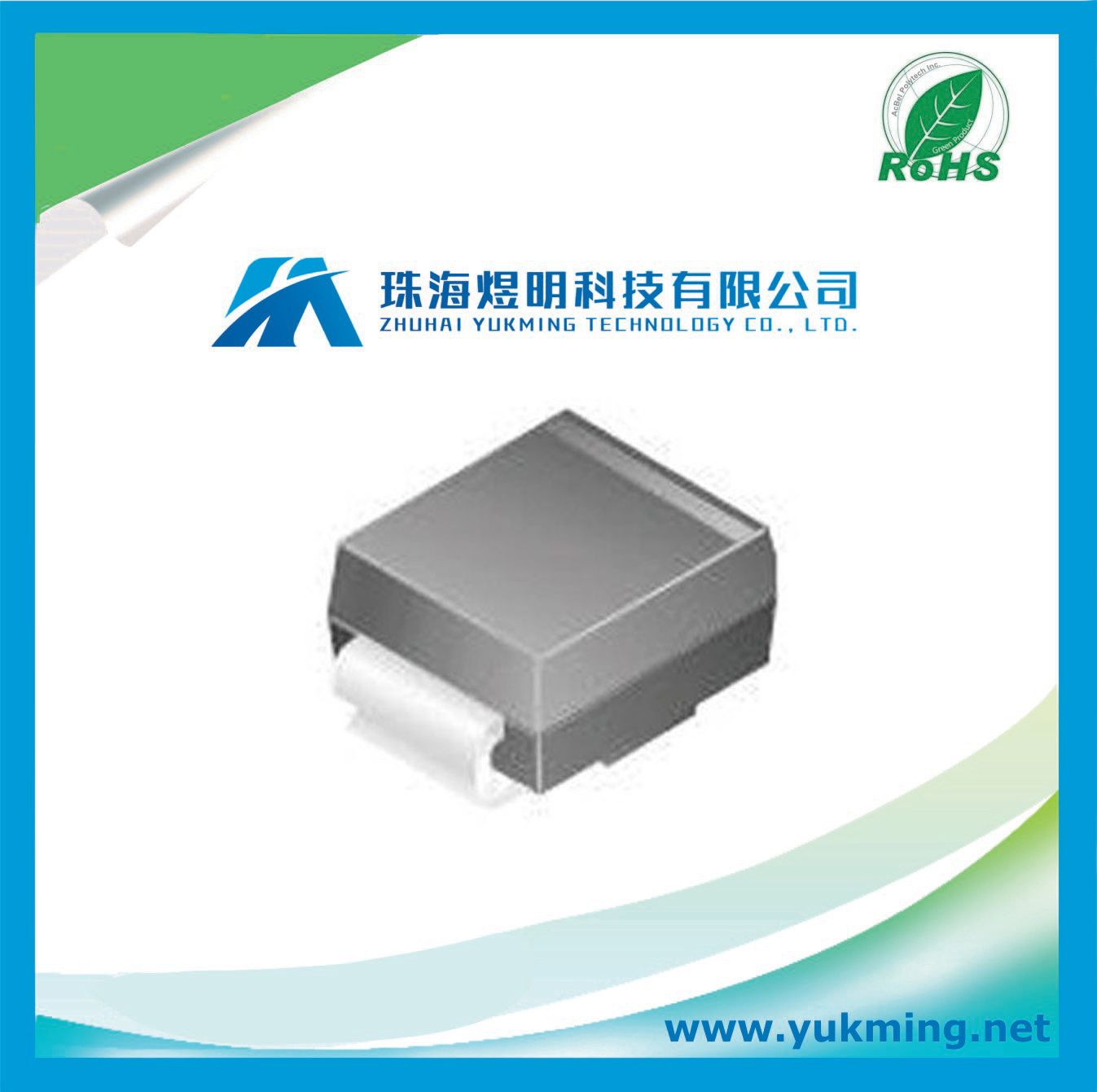

Diode Smbj30ca of Voltage Suppressor Electronic Component
| Price: | US $ 0.047/Piece |
|---|---|
| Min Order: | 750/Piece |
| Pay Type: | L/C,T/T,D/P,Paypal |
| Lead time | 2 to 3 days after receiving the payment. |
| Remark | 100% New and original ; 30 days warranty |
| Payment | Heng Seng Bank (Hong Kong), Paypal, |
| Shipment | DHL ,TNT ,FEDEX, UPS or any other express |
MANUFACTURER
Littelfuse
PRODUCT CATEGORY
TVS
DESCRIPTION
Diode TVS Single Bi-Dir 30V 600W 2-Pin SMB T/R
Features
· 600W Peak Pulse Power Dissipation
· 5.0V - 170V Standoff Voltages
· Glass Passivated Die Construction
· Uni- and Bi-Directional Versions Available
· Excellent Clamping Capability
· Fast Response Time
· Lead Free Finish/RoHS Compliant (Note 4)
Mechanical Data
· Case: SMB
· Case Material: Molded Plastic. UL Flammability
Classification Rating 94V-0
· Moisture Sensitivity: Level 1 per J-STD-020C
· Terminals: Lead Free Plating (Matte Tin Finish).
Solderable per MIL-STD-202, Method 208
· Polarity Indicator: Cathode Band
(Note: Bi-directional devices have no polarity indicator.)
· Marking: Date Code and Marking Code
See Page 4
· Ordering Info: See Page 4
Specifications
EU RoHS Compliant
Direction Type Bi-Directional
Maximum Reverse Stand-Off Voltage (V) 30
Maximum Reverse Leakage Current (uA) 1
Maximum Clamping Voltage (V) 48.4
Maximum Peak Pulse Current (A) 12.4
Minimum Breakdown Voltage (V) 33.3
Test Current (mA) 1
Peak Pulse Power Dissipation (W) 600
Minimum Operating Temperature (°C) -65
Maximum Operating Temperature (°C) 150
Operating Junction Temperature (°C) -65 to 175
Number of Elements per Chip 1
Packaging Tape and Reel
ESD Protection Yes
Mounting Surface Mount

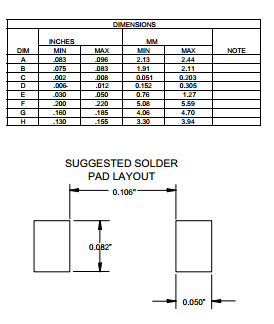

Package Height (mm) 2.24(Max)
Package Length (mm) 4.57(Max)
Package Width (mm) 3.94(Max)
PCB changed 2

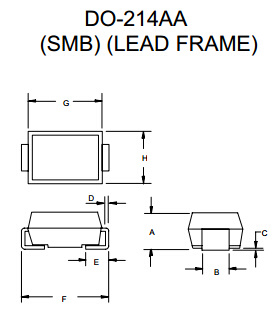

Standard Package Name DO-214-AA
Supplier Package SMB
Pin Count 2
Lead Shape J-Lead
· Weight: 0.1 grams (approximate)
| Prod Model: | SMBJ30CA |
|---|---|
| Shape: | Do-214AA |
