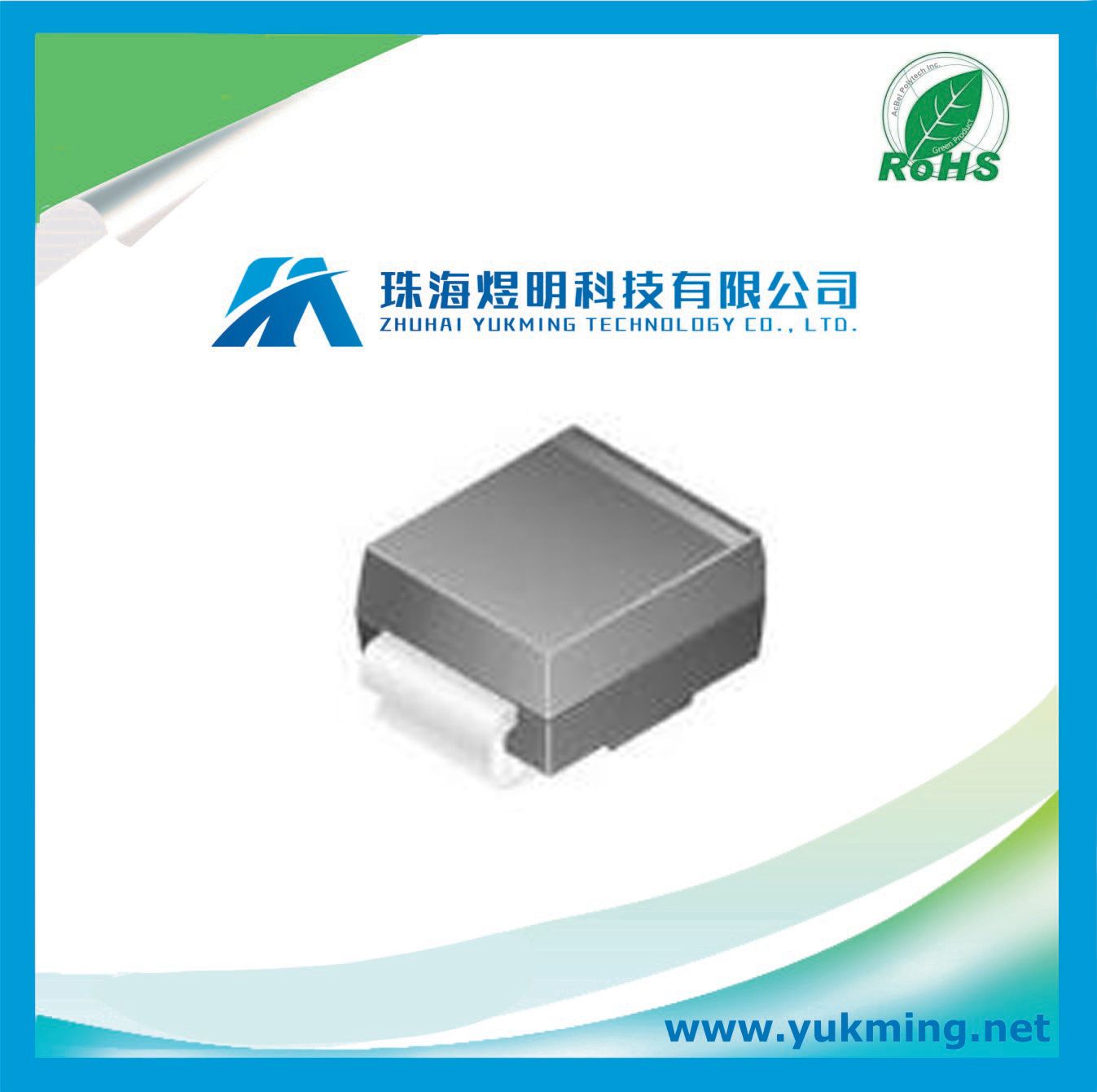

Diode Smbj10ca Tvs Single of Electronic Component
| Price: | US $ 0.041/Piece |
|---|---|
| Min Order: | 1000/Piece |
| Pay Type: | L/C,T/T,D/P,Paypal |
| Lead time | 2 to 3 days after receiving the payment. |
| Remark | 100% New and original ; 30 days warranty |
| Payment | Heng Seng Bank (Hong Kong), Paypal, |
| Shipment | DHL ,TNT ,FEDEX, UPS or any other express |
MANUFACTURER
Fairchild Semiconductor
PRODUCT CATEGORY
TVS
DESCRIPTION
Diode TVS Single Bi-Dir 10V 600W 2-Pin SMBJ T/R
Specifications
EU RoHS Compliant
Direction Type Bi-Directional
Maximum Reverse Stand-Off Voltage (V) 10
Maximum Reverse Leakage Current (uA) 10
Maximum Clamping Voltage (V) 17
Maximum Peak Pulse Current (A) 35.3
Minimum Breakdown Voltage (V) 11.1
Test Current (mA) 1
Peak Pulse Power Dissipation (W) 600
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 150
Operating Junction Temperature (°C) -55 to 150
Number of Elements per Chip 1
Packaging Tape and Reel
ESD Protection Unknown
Mounting Surface Mount
Package Height (mm) 2.45(Max)
Package Length (mm) 4.75(Max)
Package Width (mm) 3.95(Max)
PCB changed 2
Standard Package Name DO-214-AA
Supplier Package SMBJ
Pin Count 2
Lead Shape J-Lead
Silicon Avalanche Diodes - 600W Surface Mount Transient Voltage Supressors
FEATURES
• For surface mounted applications in order to optimize
board space
• Low profile package
• Built-in strain relief
• Glass passivated junction
• Low inductance
• Excellent clamping capability
• Repetition Rate (duty cycle): 0.01%
• Fast response time: typically less than 1.0ps from 0 Volts to
BV for unidirectional types
• Typical IR less than 1 mA above 10V
• High Temperature soldering: 250°C/10 seconds at terminals
• Plastic packages has Underwriters Laboratory
Flammability 94V-O

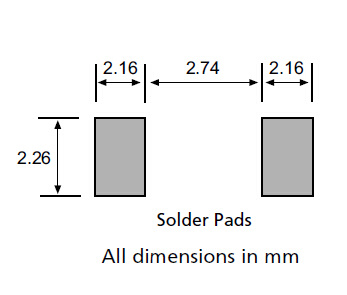

MECHANICAL CHARACTERISTICS

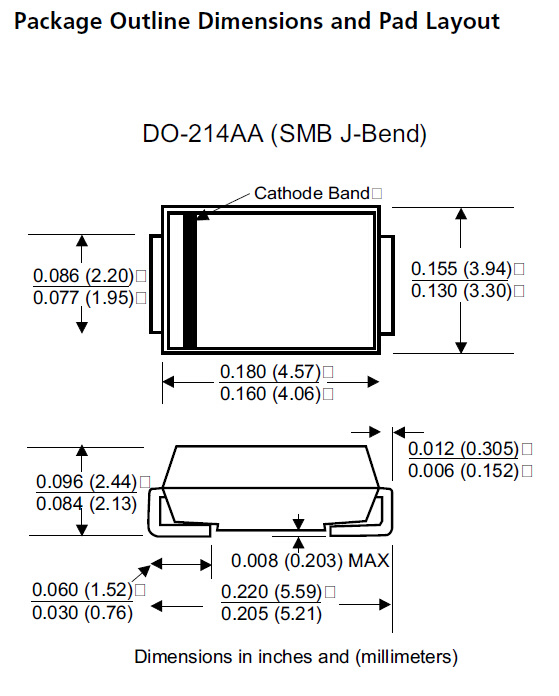

• Case:JEDEC DO214AA. Molded plastic over glass passivated
junction
• Terminal: Solder plated, solderable per MIL-STD-750
Method 2026
• Polarity. Color band denotes positive end(cathode) except
Bidirectional
• Standard Packaging: 12mm tape(EIA STF RS-481)
• Weight: 0.003 ounce, 0.093 gram
DEVICES FOR BIPOLAR APPLICATIONS
For Bidirectional use C or CA Suffix for types SMBJ5.0 thru types
SMBJ110(e.g. SMBJ5.OC, SMBJ170CA)
Electrical characteristics apply in both directions
| Prod Model: | SMBJ10CA |
|---|---|
| Direction Type: | Bi-Directional |
| Maximum Reverse Stand-off Voltage (V): | 10 |
| Maximum Reverse Leakage Current (Ua): | 10 |
| Maximum Clamping Voltage (V): | 17 |
| Maximum Peak Pulse Current (a): | 35.3 |
| Minimum Breakdown Voltage (V): | 11.1 |
