Dongguan Yuanyao Electronics Technology Co., Ltd. >> Sand and Dust Test Cabinet for Industry

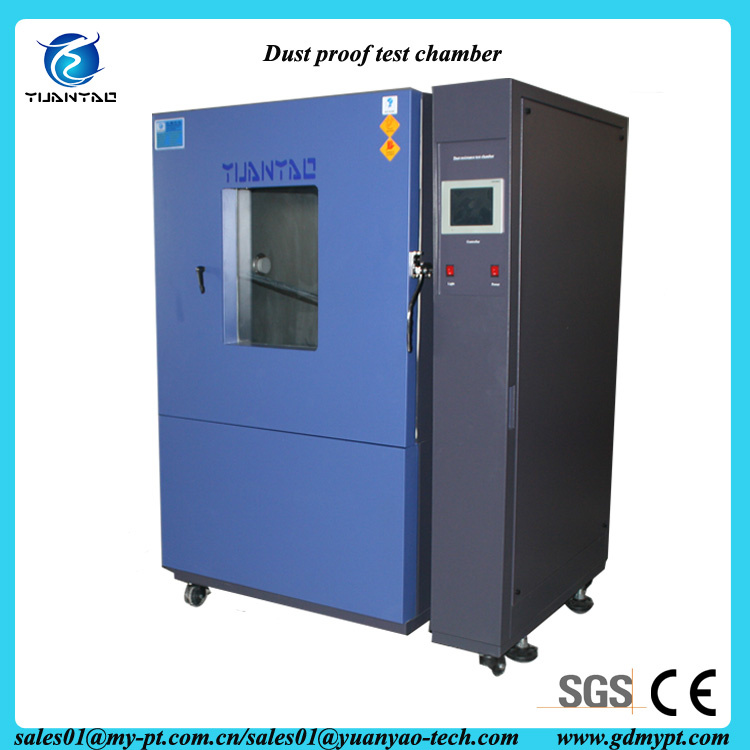

Sand and Dust Test Cabinet for Industry
| Price: | US $ 6000-15000/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
Sand and Dust Test Cabinet for Industry(YSDT-1000-C)
Sand and Dust Test Cabinet for Industry is applied to test the performance of electronic electrical products, automotive, motorcycle parts, seal the pieces in the sand and dust environment of using, storage, transportation.
Technical Specifications
1. Equipped with a large viewing glass window
2. Operating easy, maintenance quickly
3. Excellent performance
Test standard
Comply with China's national defense industry standard GJB150.12 and major international test standards for different foreign markets, such as: IEC-529 (shell protection grade - IP code), GB4208-93, and DIN40050.
Advantages
1). Professional technology support and agent brand equipment;
2). Reasonable price and high quality;
3). Fast shipment by reputed shipping line, delivery in time
Feature
1. Use electronic sensor and humidity displayed in the control panel directly.
2. Provides a ready-made solution to common tests for automotive and electronic.
3. Large observation window with bright lights to keep the box, and use of tempered glass embedded heating element, at any time a clear observation box condition.
4. Imported high grade stainless steel inner tank (SUS304) mirror panels, use of A3 steel box outside the gall spray, increasing the appearance of the texture and cleanliness.
5. Equipment containing dust vertical circulation of air, dust can be reused for testing; Device itself has a good sealing performance, test, laboratory test can clearly observe the situation; Device equipped with a vacuum system to meet the needs test; Equipment dust the bottom of the device can be replaced.
6. Device equipped with a vacuum system to meet the needs test.
7. Customization service is available and buyer's ideas are warmly welcomed.
Package: Well packed in wooden cases, suitable for long distance shipments.
Production leadtime: 35 days after receipt of T/T down payment or L/C.
In addition to Sand and Dust Test Chamber, we are also manufacturing:
Precision Oven Tester, Triple Type Temp. & Humidity Chamber, Temp. & Humidity Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humidity & Vibration Combined Test Chamber, Aging Oven Tester, Rain / Spray Test Chamber, Burn-in test equipment, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.
If you want to konw more about the product, please feel free to contact us!
Sand and Dust Test Cabinet for Industry is applied to test the performance of electronic electrical products, automotive, motorcycle parts, seal the pieces in the sand and dust environment of using, storage, transportation.
Technical Specifications
1. Equipped with a large viewing glass window
2. Operating easy, maintenance quickly
3. Excellent performance
Test standard
Comply with China's national defense industry standard GJB150.12 and major international test standards for different foreign markets, such as: IEC-529 (shell protection grade - IP code), GB4208-93, and DIN40050.
Advantages
1). Professional technology support and agent brand equipment;
2). Reasonable price and high quality;
3). Fast shipment by reputed shipping line, delivery in time
Feature
1. Use electronic sensor and humidity displayed in the control panel directly.
2. Provides a ready-made solution to common tests for automotive and electronic.
3. Large observation window with bright lights to keep the box, and use of tempered glass embedded heating element, at any time a clear observation box condition.
4. Imported high grade stainless steel inner tank (SUS304) mirror panels, use of A3 steel box outside the gall spray, increasing the appearance of the texture and cleanliness.
5. Equipment containing dust vertical circulation of air, dust can be reused for testing; Device itself has a good sealing performance, test, laboratory test can clearly observe the situation; Device equipped with a vacuum system to meet the needs test; Equipment dust the bottom of the device can be replaced.
6. Device equipped with a vacuum system to meet the needs test.
7. Customization service is available and buyer's ideas are warmly welcomed.
Package: Well packed in wooden cases, suitable for long distance shipments.
Production leadtime: 35 days after receipt of T/T down payment or L/C.
In addition to Sand and Dust Test Chamber, we are also manufacturing:
Precision Oven Tester, Triple Type Temp. & Humidity Chamber, Temp. & Humidity Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humidity & Vibration Combined Test Chamber, Aging Oven Tester, Rain / Spray Test Chamber, Burn-in test equipment, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.
If you want to konw more about the product, please feel free to contact us!
| Model | YSDT-1000-F | YSDT-1000-C(IEC-529) | |||||
| Internal Dim.W×H×D(mm) | 1000×1000×1000 | 1000×1000×1000 | |||||
| External Dim.W×H×D(mm) | 1350×1950×1350 | 1350×1950×1350 | |||||
| Testing Type | F1 | F2 | F3 | IEC60529 | |||
| C1 | C2 | ||||||
| Concentration of dust(mg/m3) | Above 60000 | Above 3000 | Above 100 | Above 5000 | Above 100 | ||
| Testing Temp. | 20°C±15°C | ||||||
| Huimidi.Range | 45%RH~85%RH | ||||||
| Flow rate of dust(m/s) | No Limited | 5m/s | 10m/s | ||||
| Testing Time | Swirl time | 5S or other | NO | ||||
| Rest time | 15min or other | ||||||
| Total time | 5H | 8H | 8H | 2H | 6H | ||
| Material | Exterior | SUS#304+Powder Coated | |||||
| Interior | SUS#304 | ||||||
| Other Components | Chamber lamp,Wiper,Casters with adjusters | ||||||
| Power Source(K.W.) | AC 1Ψ 220V 60/50Hz 4KW | ||||||
| Prod Model: | YSDT-1000-C(IEC-529) |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Internal Size(Mm): | 1000*1000*1000 |
| Testing Type: | Comply with Standard IEC60529 |
| Concentration Of Dust: | Above 5000 Mg / M3 |
| Testing Temp.: | 20 Degree Celsius +/- 15 Degree Celsius |
| Humidity Range: | 45%Rh-85%Rh |
| Swirl Time: | 5s |
| Material: | Stainless Steel |
| Warranty: | 12 Month |
| Flow Rate Of Dust: | 5m/S |
| Total Time: | 2h |
| Type: | Material Testing Machine |
| Weight: | 100-500Kg |
| Power Source: | AC220V |
| Control: | Controller |
| Oil Cylinder Position: | N/a |
