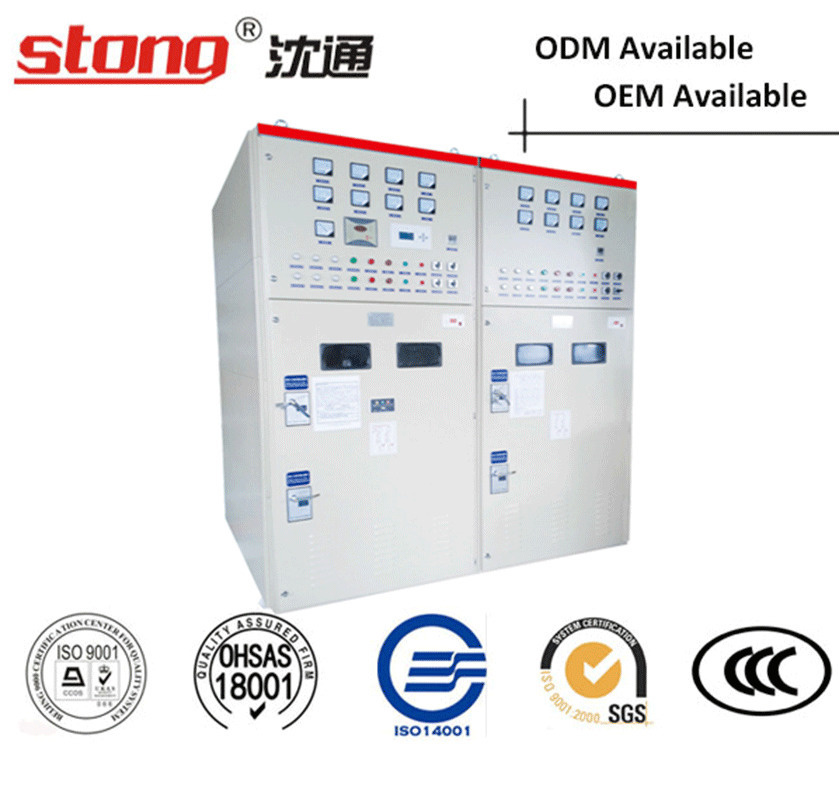

TBB Series High Voltage Capacitor Compensation Device Cabinet
| Price: | US $ 3000-5000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,Western Union,Paypal |
Advantages:
1.Our Company Has Great Reputation In Domestic Market.
2.Good Quality Guaranteed With Reasonable Price.
3.OEM,ODM Are Welcomed.
4.Goods Will Be Delivered On Time.
5.Factory Selling Directly

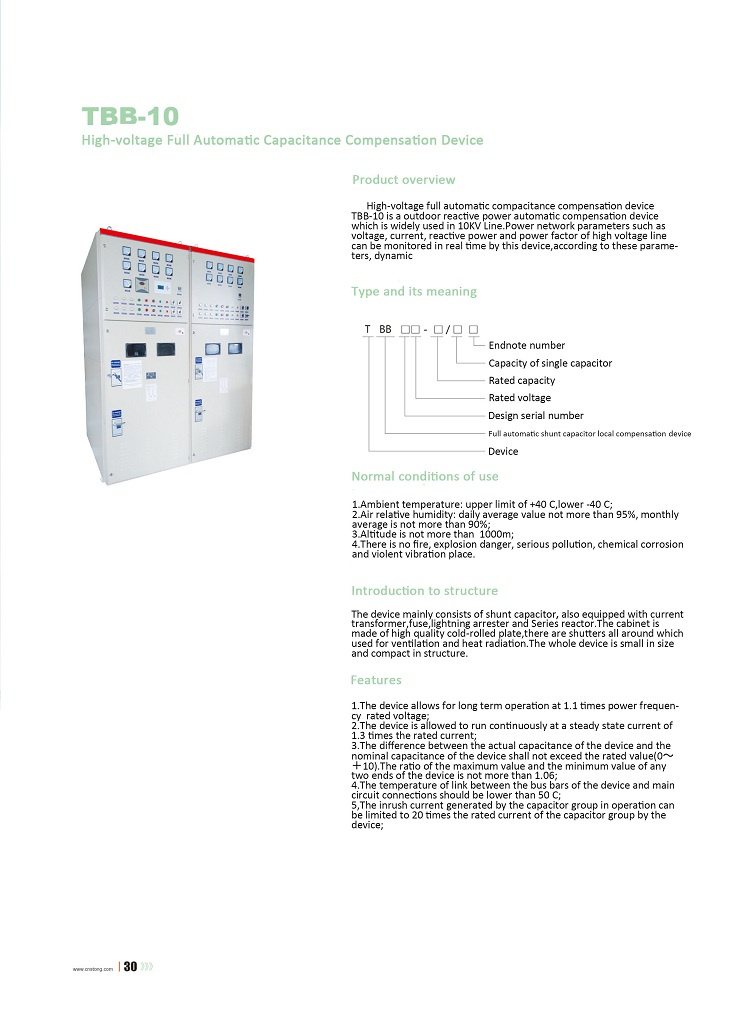

Product overview
High-voltage full automatic compacitance
compensation device TBB-10 is a outdoor reactive
power automatic compensation device which is widely
used in 10KV Line. Power network parameters such as
voltage, current, reactive power and power factor of
high voltage line can be monitored in real time by this
device, according to these parameters, dynamic
monitoring and compensating for high voltage power
network. Play an important role in improving line power
factor and voltage, reducing line loss, improving the
quality of power supply.
Type meaning:
T-------Device
BB-----Full automatic shunt capacitor local compensation device
------design number
------rated voltage
------rated capacity
------Capacity of single capacitor
------Endnote number
Normal conditions of use
1, Ambient temperature: upper limit of +40 C,lower -40 C;
2,Air relative humidity: daily average value not morethan 95%, monthly average is not more than 90%;
3, Altitude is not more than 1000m;
4,There is no fire, explosion danger, serious pollution,chemical corrosion and violent vibration place.
Introduction to structure:
The device mainly consists of shunt capacitor, alsoequipped with current transformer, fuse, lightning arrester and Series reactor. The cabinet is made of high quality
cold-rolled plate, there are shutters all around whichused for ventilation and heat radiation. The whole deviceis small in size and compact in structure.
Features:
1,The device allows for long term operation at 1.1 timespower frequency rated voltage;
2,The device is allowed to run continuously at a steadystate current of 1.3 times the rated current;
3,The difference between the actual capacitance ofthe device and the nominal capacitance of the deviceshall not exceed the rated value(0~+10).The ratio of
the maximum value and the minimum value of any twoends of the device is not more than 1.06;
4,The temperature of link between the bus bars of thedevice and main circuit connections should be lowerthan 50 C;
5,The inrush current generated by the capacitor group inoperation can be limited to 20 times the rated current ofthe capacitor group by the d
PLS FOLLOW MY LINKEDIN
*Please Offer Us the Wiring Diagram Of the Switchgear You Need For Our Quotation*
1.Our Company Has Great Reputation In Domestic Market.
2.Good Quality Guaranteed With Reasonable Price.
3.OEM,ODM Are Welcomed.
4.Goods Will Be Delivered On Time.
5.Factory Selling Directly
Product overview
High-voltage full automatic compacitance
compensation device TBB-10 is a outdoor reactive
power automatic compensation device which is widely
used in 10KV Line. Power network parameters such as
voltage, current, reactive power and power factor of
high voltage line can be monitored in real time by this
device, according to these parameters, dynamic
monitoring and compensating for high voltage power
network. Play an important role in improving line power
factor and voltage, reducing line loss, improving the
quality of power supply.
Type meaning:
T-------Device
BB-----Full automatic shunt capacitor local compensation device
------design number
------rated voltage
------rated capacity
------Capacity of single capacitor
------Endnote number
Normal conditions of use
1, Ambient temperature: upper limit of +40 C,lower -40 C;
2,Air relative humidity: daily average value not morethan 95%, monthly average is not more than 90%;
3, Altitude is not more than 1000m;
4,There is no fire, explosion danger, serious pollution,chemical corrosion and violent vibration place.
Introduction to structure:
The device mainly consists of shunt capacitor, alsoequipped with current transformer, fuse, lightning arrester and Series reactor. The cabinet is made of high quality
cold-rolled plate, there are shutters all around whichused for ventilation and heat radiation. The whole deviceis small in size and compact in structure.
Features:
1,The device allows for long term operation at 1.1 timespower frequency rated voltage;
2,The device is allowed to run continuously at a steadystate current of 1.3 times the rated current;
3,The difference between the actual capacitance ofthe device and the nominal capacitance of the deviceshall not exceed the rated value(0~+10).The ratio of
the maximum value and the minimum value of any twoends of the device is not more than 1.06;
4,The temperature of link between the bus bars of thedevice and main circuit connections should be lowerthan 50 C;
5,The inrush current generated by the capacitor group inoperation can be limited to 20 times the rated current ofthe capacitor group by the d
PLS FOLLOW MY LINKEDIN
| Joimmy Chow / Guanchu Tao |
*Please Offer Us the Wiring Diagram Of the Switchgear You Need For Our Quotation*
| Prod Model: | TBB-10 |
|---|---|
| Rated Voltage: | 10kv |
| Rated Frequency: | 50Hz |
| Customized: | Available |
| Attribute: | Electric Cabinet |
| Function: | Power Transmission |
| Main Accessory: | Vacuum Circuit Breaker Vcb |
| Position: | Outdoor |
| Effect: | Transformer |
| Shell Properties: | IP3X |
| Type: | Prefabricated |
| Structure: | Box |
| Brand: | Shentong |
