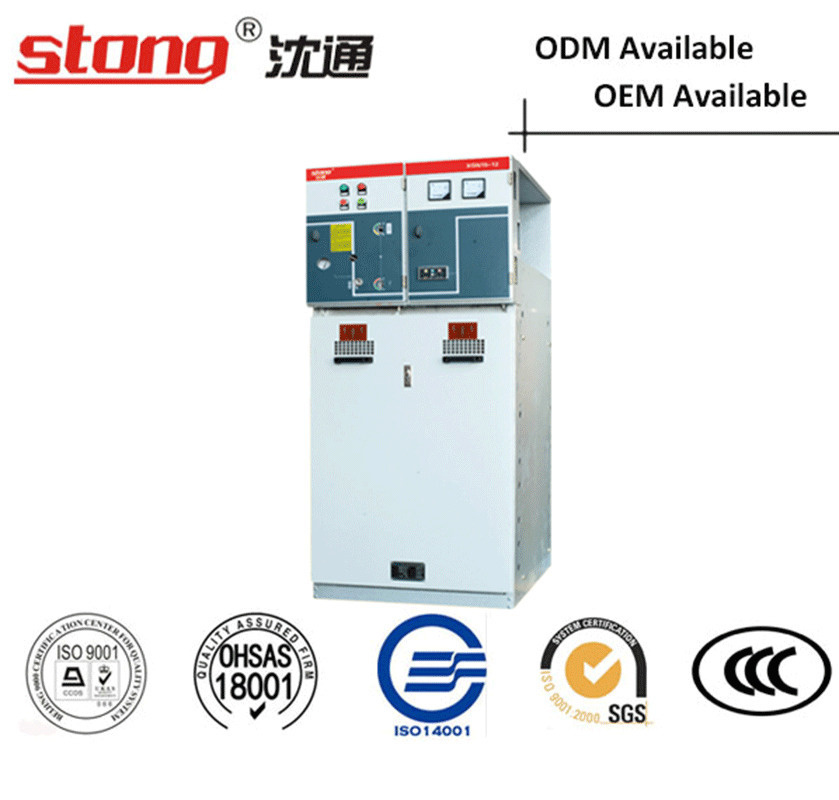

Xgn Series Fixed AC Power Distribution Switch Cabinet
| Price: | US $ 3000-4000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,Western Union,Paypal |
Advantages:
1.Our Company Has Great Reputation In Domestic Market.
2.Good Quality Guaranteed With Reasonable Price.
3.OEM,ODM Are Welcomed.
4.Goods Will Be Delivered On Time.
5.Factory Selling Directly
Product overview
XGN15-12(F), XGN15-12(F·R) box-type fixed AC metal closed switch device("Switch device" for short), for the ring network power supply or radiation type power supply system with rated voltage 12kV, rated current 630A and below, especially suitable as the control and protection of the power system when installed in the pre installed substation. The FLN36-12D type six sulfur fluoride load switch or FLRN36-12D type load switch-fuse combination electric appliance is installed inside the product (with Insulated shell), it has the characteristics of small size, light weight, simple operation, light operating force, interlocking reliable, maintenance free and so on, it is a new generation high voltage switching equipment for urban power grid transformation and construction.
This product is in compliance with: GB3906< 3~35kV AC metal closed switch equipment>, GB/T11022< Common technical requirements for high voltage switchgear and control equipment standards>, IEC298, DL/T404< Technical condition of high-voltage switch cabinet ordering>.
Type and its meaning
X G N 15 - 12 (F·R) X - Box type
G - Fixed
N - Indoor
15 - Design Serial Number
12 - Rated voltage
F·R - Load switch-fuse combination electric appliance
Normal using conditions
Monthly average not more than 90%, the monthly average value of water vapor pressure not more than 1.8kPa.
Structure
Switch device is composed of a cabinet body, a main switch (SF6 load switch or switchgear), grounding switch, instrument room, busbar and other electrical components and auxiliary components.
The cabinet is assembled by aluminum and zinc plate with modular forming. The back of the cabinet is provided with a pressure relief channel to protect the operator when an internal fault occurs.
The busbar in the busbar chamber is well insulated, which is directly connected to the terminal of the load switch. The three-phase busbar is arranged in a vertical direction, so that the switching device can be expanded arbitrarily on the left and right, and is easy to change the layout.
The instrument room is located on the upper part of the switch device, which can be installed with current meter, voltage meter, indicating lamp and electric operating mechanism.
Main technical parameters
2. Main technical parameters of the main switch (SF6 load switch and combined electric appliance) in the switch cabinet
Outline and installation dimensions
Busbar chamber Switch chamber Instrument chamber Operating mechanism chamber
Notice when ordering
The following information should be provided when ordering:
*Please offer us the wiring diagram of the switchgear to get the quotion*
1.Our Company Has Great Reputation In Domestic Market.
2.Good Quality Guaranteed With Reasonable Price.
3.OEM,ODM Are Welcomed.
4.Goods Will Be Delivered On Time.
5.Factory Selling Directly

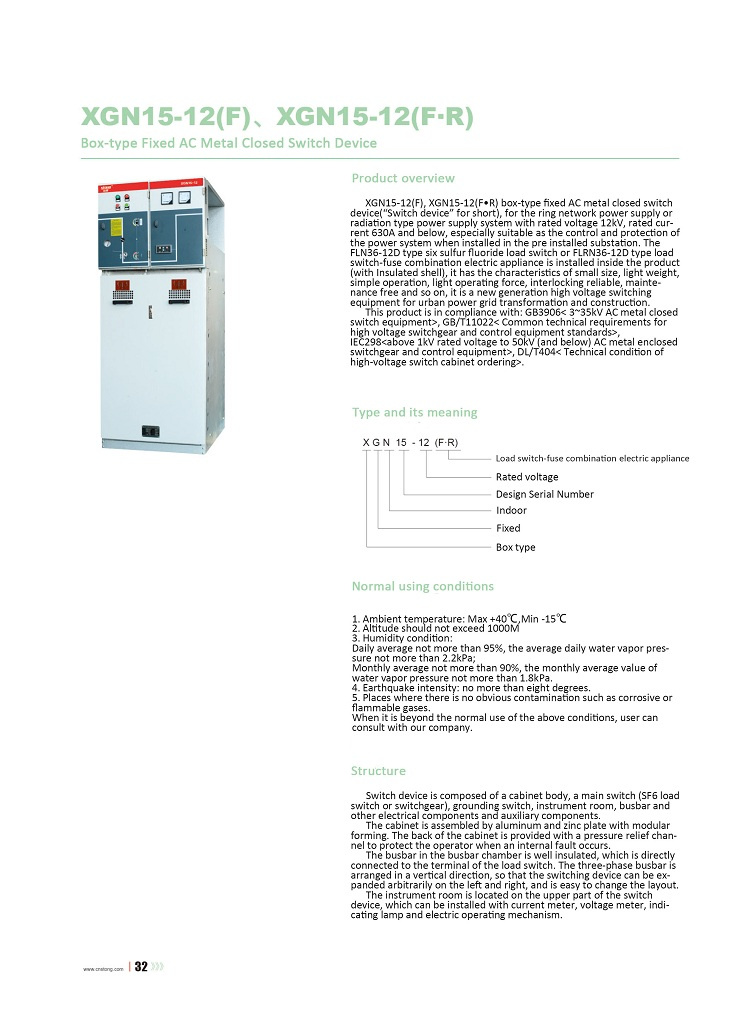

Product overview
XGN15-12(F), XGN15-12(F·R) box-type fixed AC metal closed switch device("Switch device" for short), for the ring network power supply or radiation type power supply system with rated voltage 12kV, rated current 630A and below, especially suitable as the control and protection of the power system when installed in the pre installed substation. The FLN36-12D type six sulfur fluoride load switch or FLRN36-12D type load switch-fuse combination electric appliance is installed inside the product (with Insulated shell), it has the characteristics of small size, light weight, simple operation, light operating force, interlocking reliable, maintenance free and so on, it is a new generation high voltage switching equipment for urban power grid transformation and construction.
This product is in compliance with: GB3906< 3~35kV AC metal closed switch equipment>, GB/T11022< Common technical requirements for high voltage switchgear and control equipment standards>, IEC298
Type and its meaning
X G N 15 - 12 (F·R) X - Box type
G - Fixed
N - Indoor
15 - Design Serial Number
12 - Rated voltage
F·R - Load switch-fuse combination electric appliance
Normal using conditions
- Ambient temperature: Max +40ºC,Min -15ºCAltitude should not exceed 1000MHumidity condition:
Monthly average not more than 90%, the monthly average value of water vapor pressure not more than 1.8kPa.
- Earthquake intensity: no more than eight degrees.Places where there is no obvious contamination such as corrosive or flammable gases.
Structure
Switch device is composed of a cabinet body, a main switch (SF6 load switch or switchgear), grounding switch, instrument room, busbar and other electrical components and auxiliary components.
The cabinet is assembled by aluminum and zinc plate with modular forming. The back of the cabinet is provided with a pressure relief channel to protect the operator when an internal fault occurs.
The busbar in the busbar chamber is well insulated, which is directly connected to the terminal of the load switch. The three-phase busbar is arranged in a vertical direction, so that the switching device can be expanded arbitrarily on the left and right, and is easy to change the layout.
The instrument room is located on the upper part of the switch device, which can be installed with current meter, voltage meter, indicating lamp and electric operating mechanism.

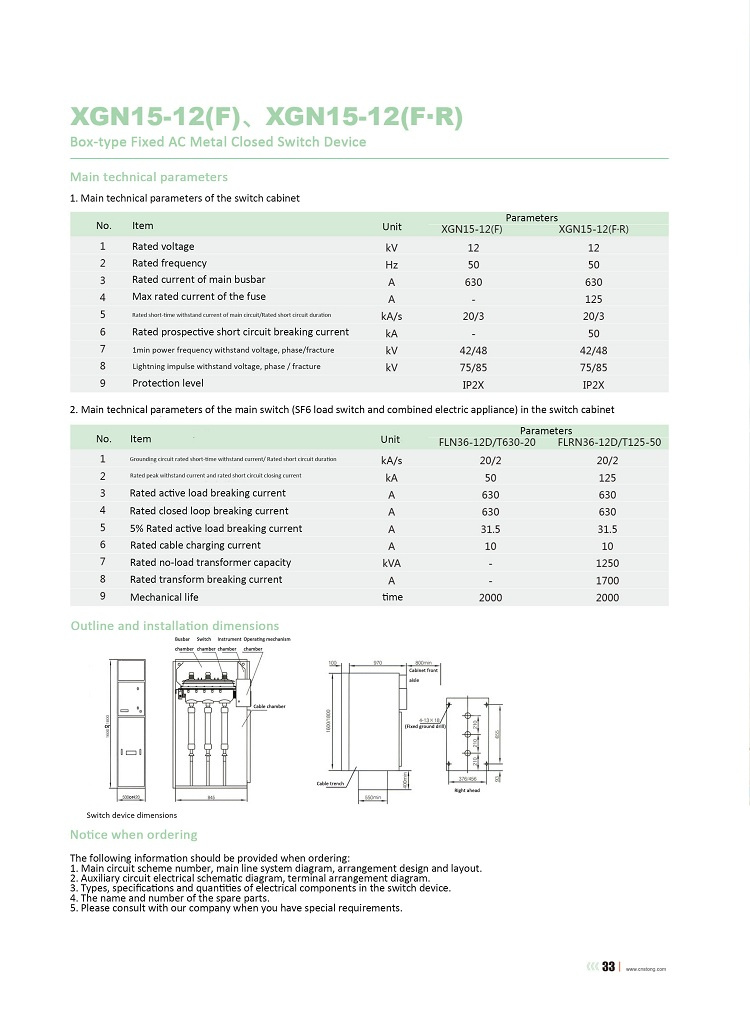

Main technical parameters
- Main technical parameters of the switch cabinet
| No | Name | unit | parameters | |
| XGN15-12(F) | XGN15-12(F·R) | |||
| 1 | Rated voltage | kV | 12 | 12 |
| 2 | Rated frequency | Hz | 50 | 50 |
| 3 | Rated current of main busbar | A | 630 | 630 |
| 4 | Max rated current of the fuse | A | - | 125 |
| 5 | Rated short-time withstand current of main circuit/Rated short circuit duration | kA/s | 20/3 | 20/3 |
| 6 | Rated prospective short circuit breaking current | kA | - | 50 |
| 7 | 1min power frequency withstand voltage, phase / fracture | kV | 42/48 | 42/48 |
| 8 | Lightning impulse withstand voltage, phase / fracture | kV | 75/85 | 75/85 |
| 9 | Protection level | IP2X | IP2X | |
2. Main technical parameters of the main switch (SF6 load switch and combined electric appliance) in the switch cabinet
| No | Name | unit | parameters | |
| FLN36-12D/T630-20 | FLRN36-12D/T125-50 | |||
| 1 | Grounding circuit rated short-time withstand current/ Rated short circuit duration | kA/s | 20/2 | 20/2 |
| 2 | Rated peak withstand current and rated short circuit closing current | kA | 50 | 125 |
| 3 | Rated active load breaking current | A | 630 | 630 |
| 4 | Rated closed loop breaking current | A | 630 | 630 |
| 5 | 5% Rated active load breaking current | A | 31.5 | 31.5 |
| 6 | Rated cable charging current | A | 10 | 10 |
| 7 | Rated no-load transformer capacity | kVA | - | 1250 |
| 8 | Rated transform breaking current | A | - | 1700 |
| 9 | Mechanical life | time | 2000 | 2000 |
Outline and installation dimensions
Busbar chamber Switch chamber Instrument chamber Operating mechanism chamber
Notice when ordering
The following information should be provided when ordering:
- Main circuit scheme number, main line system diagram, arrangement design and layout.
- Auxiliary circuit electrical schematic diagram, terminal arrangement diagram.
- Types, specifications and quantities of electrical components in the switch device.
- The name and number of the spare parts.
- Please consult with our company when you have special requirements.
*Please offer us the wiring diagram of the switchgear to get the quotion*
| Prod Model: | XGN-12 |
|---|---|
| Rated Voltage: | 12kv |
| Rated Frequency: | 50Hz |
| Customized: | Available |
| Attribute: | Electric Cabinet |
| Function: | Power Transmission |
| Main Accessory: | Vacuum Circuit Breaker Vcb |
| Position: | Outdoor |
| Effect: | Transformer |
| Rated Current: | 630A |
| Type: | Prefabricated |
| Structure: | Box |
| Brand: | Shentong |
